ComfyUI Advanced Camera Prompts

Advanced camera control prompt generator for ComfyUI, optimized for dx8152's MultiAngle LoRA. A ComfyUI custom node that automatically generates professional camera control prompts by analyzing 3D camera data. This node reads camera information from Load 3D nodes and converts it into detailed, cinematography-accurate descriptions suitable for image generation workflows.

What It Does

This node takes camera position and orientation data from your 3D scene and automatically generates:

• Professional shot type classifications (close-up, medium shot, wide shot, etc.)
• Camera angle descriptions (high angle, low angle, bird's eye, etc.)
• Camera movement and positioning information
• Technical camera parameters (focal length, FOV, distance)

All of this is output as both human-readable prompts and structured JSON data.

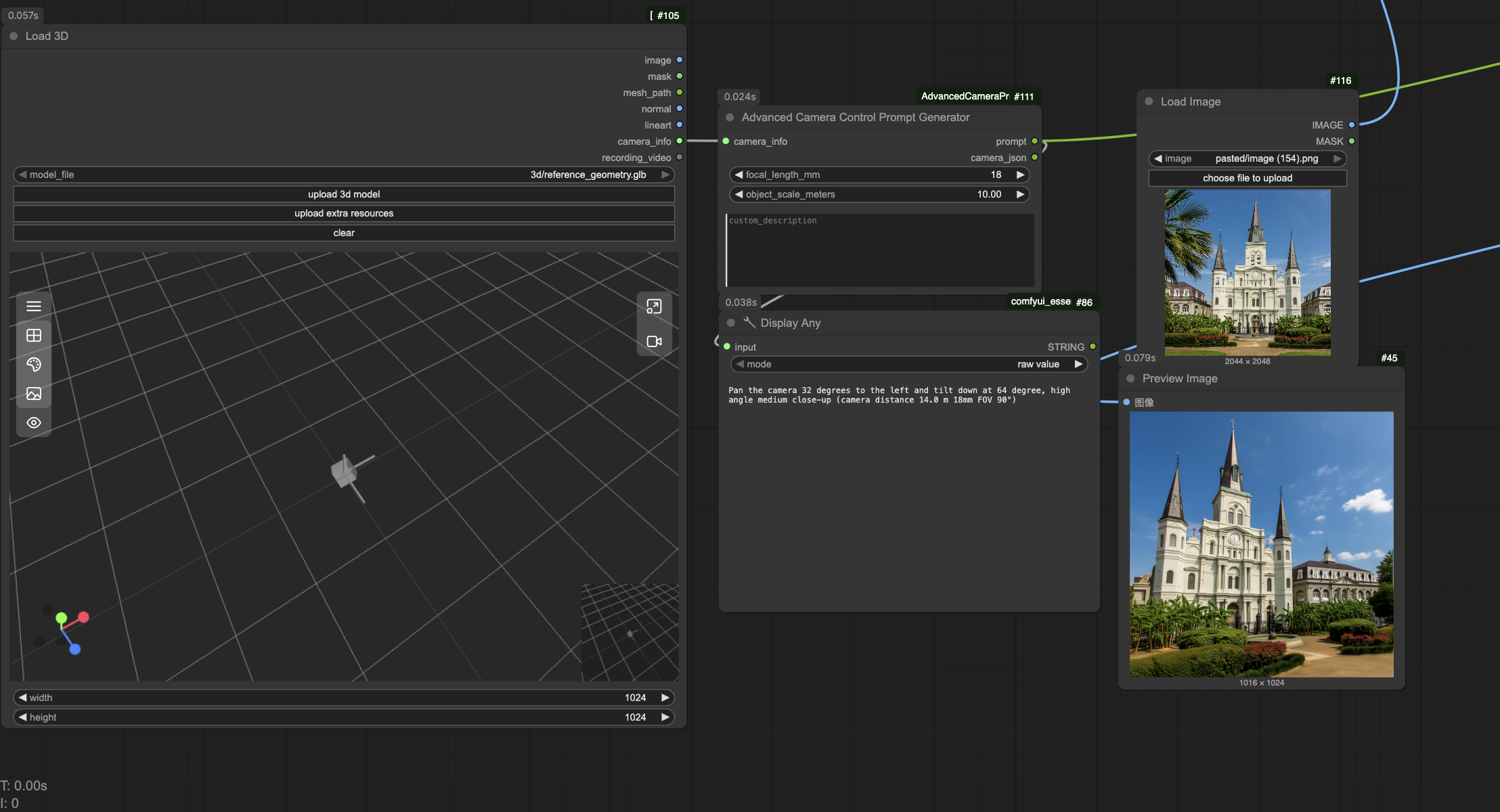

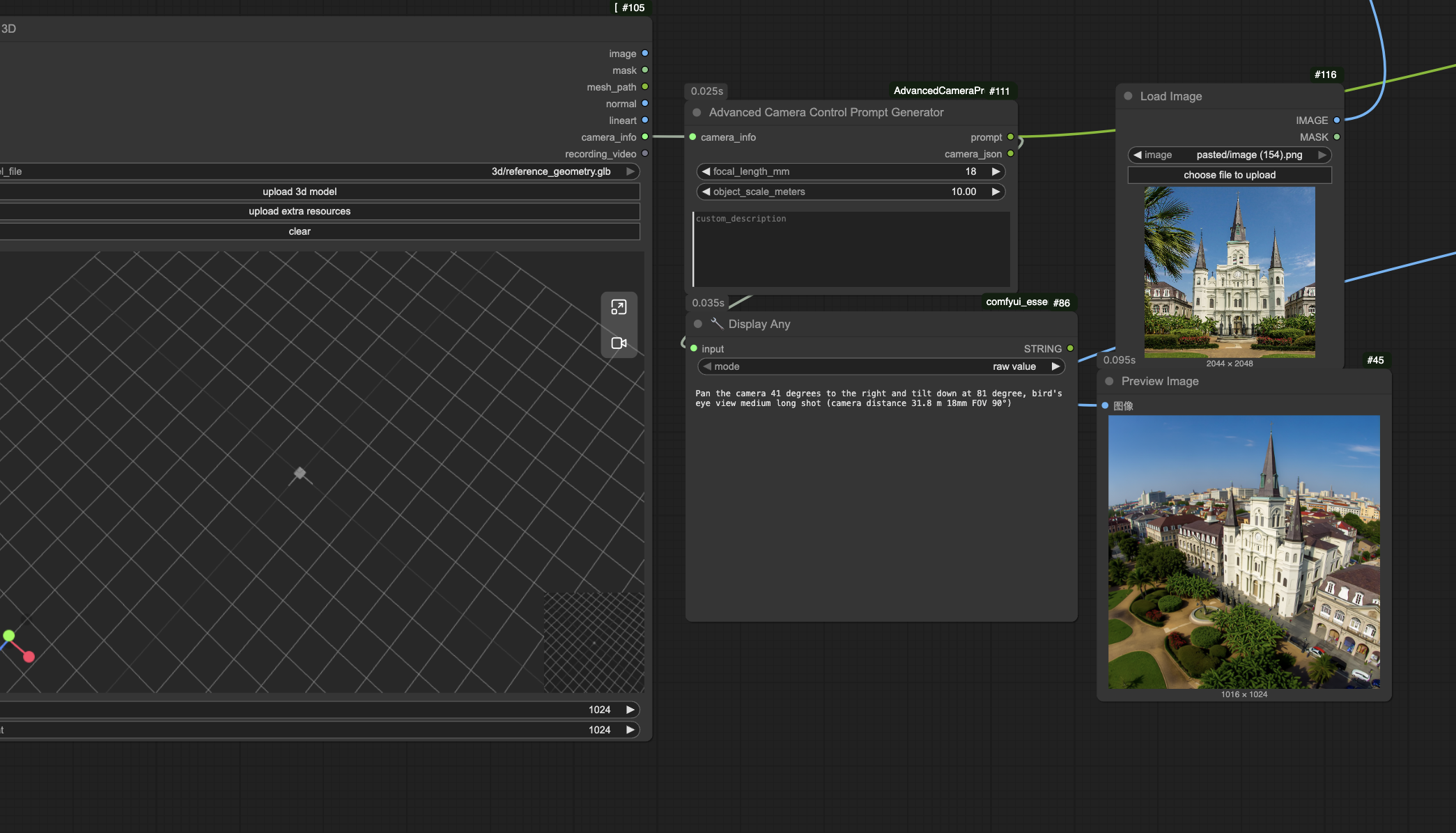

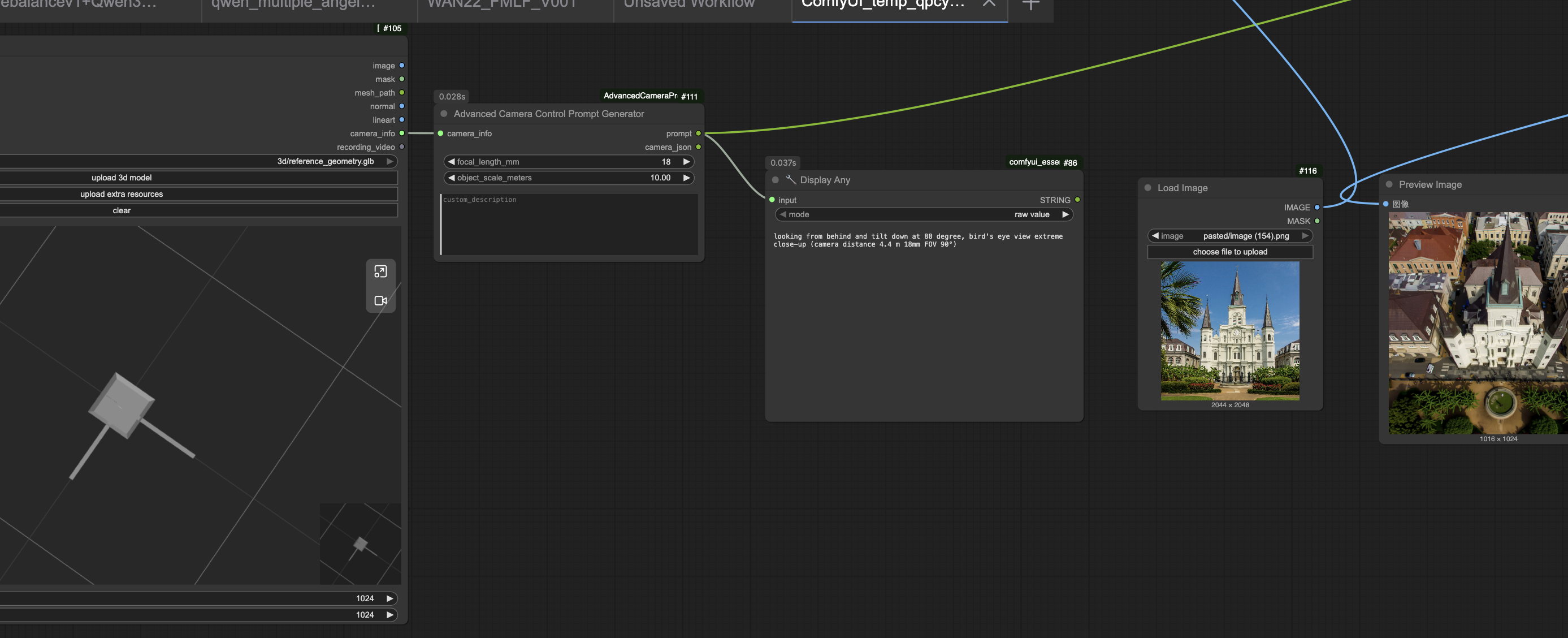

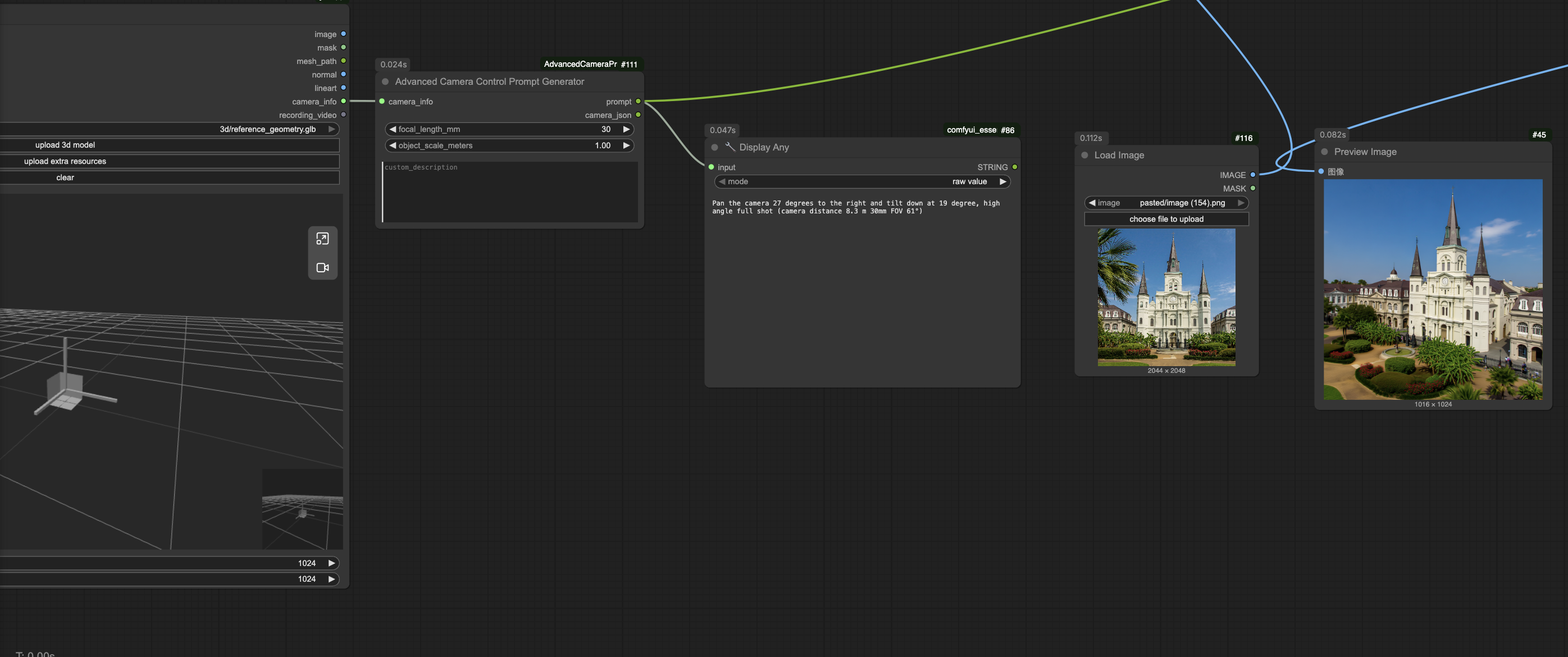

Visual Examples

Here are some examples showing the node in action:

Features

• Smart Camera Analysis: Automatically extracts camera position, target, and rotation from 3D nodes
• Intelligent Shot Classification: Determines shot types using distance, focal length, FOV, or object framing
• Angle Detection: Recognizes various camera angles including high/low angles, dutch angles, and special views
• Flexible Input: Supports custom focal length settings and optional object scale for precise framing calculations
• Dual Output Format: Provides both natural language prompts and structured JSON data
• Cinematography Standards: Based on industry-standard shot types and camera angle definitions

Installation

1. Navigate to your ComfyUI custom nodes directory:

   cd ComfyUI/custom_nodes


2. Clone this repository:

   git clone https://github.com/jandan520/ComfyUI-AdvancedCameraPrompts.git


3. Restart ComfyUI to load the new node

How to Use

Connecting the Node

1. Add a Load 3D or Load 3D - Animation node to your workflow
2. Add the Advanced Camera Control Prompt Generator node
3. Connect the camera output from your 3D node to the "Camera Info" input

See the example images above for visual reference on how to set up the node in your workflow.

Input Parameters

Required:

• Camera Info: Connect the camera output from your Load 3D node

Optional:

• Focal Length (mm): Set your camera's focal length (default: 50mm, range: 1-1000mm)
  • This affects FOV calculation and shot type classification
• Object Scale (meters): Specify the size of your subject in meters (default: 1.0m)
  • Enables framing-based shot classification for more accurate results
• Custom Description: Add any additional text to append to the generated prompt

Outputs

The node provides two outputs:

1. Prompt (String): A natural language description of the camera setup

   • Example: Pan the camera 45 degrees to the right, high angle medium shot (camera distance 2.5 m 50mm FOV 40°)

2. Camera JSON (String): Structured data with all camera parameters

   {
       "camera": {
           "focal_length_mm": 50,
           "sensor_width_mm": 36,
           "sensor_height_mm": 24,
           "distance_m": 2.5,
           "tilt_deg": "tilt down 15.0",
           "pan_deg": "pan to right 45.0",
           "roll_deg": 0.0,
           "shot_type": "medium_shot"
       }
   }


Shot Type Classification

The node automatically determines shot types based on multiple factors:

| Shot Type | Typical Distance | Focal Length Range | FOV Range | |-----------|------------------|-------------------|-----------| | Extreme Close-Up | 0.3-0.6m | 85-135mm | 10-20° | | Close-Up | 0.6-1.2m | 50-85mm | 20-30° | | Medium Close-Up | 1.0-1.8m | 35-50mm | 30-40° | | Medium Shot | 1.5-3.0m | 28-50mm | 35-45° | | Medium Long Shot | 2.5-4.0m | 24-35mm | 45-55° | | Full Shot | 3.0-5.0m | 24-35mm | 50-60° | | Wide Shot | 5.0-10.0m | 18-24mm | 60-90° | | Extreme Wide Shot | 10-50m | 14-20mm | 90-120° |

Camera Angles

The node recognizes these camera angles:

• Eye Level: Neutral perspective (-5° to +5°)
• High Angle: Camera looking down (-20° to -45°)
• Slight Low Angle: Just below eye level (5° to 15°)
• Standard Low Angle: Waist-chest level (15° to 30°)
• Deep Low Angle: Knee-waist level (30° to 45°)
• Extreme Low Angle: Ground level, worm's-eye view (45° to 90°)
• Bird's Eye: Directly overhead (-80° to -90°)
• Dutch Angle: Camera tilted sideways (5° to 30° roll)
• Dutch Low Angle: Combination of low angle and roll

Use Cases

• Image Generation: Generate accurate camera prompts for AI image models
• 3D to 2D Workflows: Convert 3D camera setups into 2D image generation prompts
• Cinematography Analysis: Analyze and document camera setups from 3D scenes
• Workflow Automation: Automatically generate camera descriptions for batch processing

Technical Specifications

• Coordinate System: Z-axis points toward camera, X-axis is horizontal, Y-axis is vertical
• Sensor Format: 35mm full-frame equivalent (36mm × 24mm)
• Distance Scaling: 1 grid unit = 4 meters
• FOV Formula: FOV = 2 × arctan(sensor_dimension / (2 × focal_length))

Requirements

• ComfyUI (latest version recommended)
• Python 3.8 or higher
• Load 3D nodes (for providing camera input)

License

MIT License

Author

Jianghong Zhu
