ComfyUI custom nodes to create output lists with strings and numbers, make combinations of them, and help with XYZ-Gridplots

Custom Nodes (0)

    README

    <!--- Auto-generated from src_README.md! Don't edit this file! Edit src_README.md instead! --> <div align="center"> <img src="/media/promo.png" alt="OutputLists Combiner Promo" width="600" /> </div> <h2 align="center">Supercharge multiprompts and grid control!</h2> <h3 align="center"> <a href="#features" target="_blank">Features</a> · <a href="#installation" target="_blank">Installation</a> · <a href="#changelog" target="_blank">Changelog</a> · <a href="#nodes" target="_blank">Nodes</a> · <a href="#examples" target="_blank">Examples</a> </h3> <div align="center"> <a href="https://www.buymeacoffee.com/GeroldMeisinger" target="_blank"><img src="https://cdn.buymeacoffee.com/buttons/v2/default-yellow.png" alt="Buy Me A Coffee" style="height: 60px !important;width: 217px !important;" ></a> </div>

    Overview

    • XYZ-GridPlots perfectly integrated into ComfyUI's paradigm. No weird samplers! No node black magic!
    • Inspect combo to iterate lists of LoRAs, samplers, checkpoints, schedulers...
    • List combinations with native support for LoRA strength, image size-variants, prompt combinations...
    • Quick OutputLists from CSV and Excel Spreadsheets, JSON data, multiline texts, number ranges...
    • Formatted strings for flexible and beautiful filenames, labels, additional metadata...

    If this custom node helps you in your work..

    • ⭐ Star the repo to make others discover the project and motivate the developer!
    • 💰 Donate for further development and greatly appreciate my efforts!

    Table of Content

    Features

    XYZ-GridPlot

    https://github.com/user-attachments/assets/a649b701-58a5-47a8-b697-e2a34a39c999

    Inspect Combo

    https://github.com/user-attachments/assets/d8da27b9-99d2-4ac5-a6ed-d368d2ae1a38

    Installation

    ComfyUI-Manager (recommended)

    Search for OutputLists Combiner

    Search OutputLists Combiner in ComfyUI-Manager

    Comfy-CLI

    comfy-cli node install ComfyUI-outputlists_combiner

    Manual

    cd custom_nodes # in ComfyUI/
git clone https://github.com/geroldmeisinger/ComfyUI-outputlists-combiner
cd ComfyUI-outputlists-combiner
uv pip install -r requirements.txt

    Changelog

    • 0.0.6 SpreadsheetOutputList, XYZGridPlot
    • 0.0.4 restructured outputs, JsonOutputList,
    • 0.0.3 ConvertAnyToIntFloatString, KSamplerImmediateSave
    • 0.0.2 restructured outputs
    • 0.0.1 StringOutputList, NumberOutputList, CombineOutputLists, FormattedString
    <!--- <details> <summary><b>0.0.0</b></summary> - feature 1 - feature 2 - feature 3 </details> -->

    Background

    Did you know that ComfyUI supports so called output lists which tell nodes downstream to execute multiple times within the same run? Notice how this output list emits four strings and causes the KSampler to run four times:

    https://github.com/user-attachments/assets/303115d3-7c28-42e8-bb52-d02e7cc1022b

    Wait, what?

    Yeah, I didn't know about it either. Apparently everytime you see the symbol 𝌠 it's an output list. This feature seems very underutilized but it allows values to be processed sequentially without weird workarounds (like for-loops, increment counters or external python scripts) which makes them perfect for prompt combinations and XYZ-gridplots. I always found grids a hazzle in ComfyUI whereas they were straightforward in Automatic1111. Most custom nodes either require a lot of manual work or you have to use some extra-special nodes (like custom KSamplers). This project tries to make good use of output lists, integrate well with the ComfyUI's paradigm and finally make XYZ-gridplots easy to use again.

    Make sure you understand what's happening in this example as it's crucial to work with the following nodes!

    Nodes

    String OutputList

    String OutputList

    (workflow included)

    Create a OutputList by separating the string in the textfield. value and index uses is_output_list=True (indicated by the symbol 𝌠) and will be processed sequentially by corresponding nodes.

    Inputs

    | Name | Type | Description | | --- | --- | --- | | separator | STRING | The string to split the textfield values by. | | values | STRING | The string which will be separated. Note that the string is trimmed of trailing newlines before splitting, and each item is again trimmed. |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | value | *𝌠 | The values from the list. | | index | INT𝌠 | Range of 0..count which can be used as an index. | | count | INT | The number of items in the list. | | inspect_combo | COMBO | A dummy output only used to pre-fill the list with values from an other COMBO input and will automatically disconnect again |

    Number OutputList

    Number OutputList

    (workflow included)

    Create a OutputList by generating a numbers of values in a range. Uses numpy.linspace internally because it works more reliably with floatingpoint values. int, float, string and index uses is_output_list=True (indicated by the symbol 𝌠) and will be processed sequentially by corresponding nodes.

    Inputs

    | Name | Type | Description | | --- | --- | --- | | start | FLOAT | Start value to generate the range from. | | stop | FLOAT | End value. If endpoint=include this number will be included in the list. | | num | INT | The number of items in the list (not to be confused with a step). | | endpoint | BOOLEAN | Decides if the stop value should be included or excluded in the items. |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | int | INT𝌠 | The value converted to int (rounded down/floored). | | float | FLOAT𝌠 | The value as a float. | | string | STRING𝌠 | The value as a float converted to string. | | index | INT𝌠 | Range of 0..count which can be used as an index. | | count | INT | Same as num. |

    JSON OutputList

    JSON OutputList

    (workflow included)

    Create a OutputList by extracting arrays or dictionaries from JSON objects. Uses JSONPath syntax to extract the values, see JSONPath on Wikipedia . All matched values will be flattend into one list. You can also use this node to create objects from literal strings like [1, 2, 3]. key, value, int and float uses is_output_list=True (indicated by the symbol 𝌠) and will be processed sequentially by corresponding nodes.

    Inputs

    | Name | Type | Description | | --- | --- | --- | | jsonpath | STRING | JSONPath used to extract the values. | | json | STRING | A JSON string which will be parsed to an object. | | obj | * | (optional) object of any type which will replace the JSON string |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | key | STRING𝌠 | The key for dictionaries or index for arrays (as string). Technically it's a global index of the flattened list for all non-keys. | | value | STRING𝌠 | The value as a string. | | int | INT𝌠 | The value as a int (if not parseable number default to 0). | | float | FLOAT𝌠 | The value as a float (if not parseable number default to 0). | | count | INT | Total number of items in the flattened list | | debug | STRING | Debug output of all matched objects as a formatted JSON string |

    Spreadsheet OutputList

    Spreadsheet OutputList

    (workflow included)

    Create a OutputLists from a spreadsheet (.csv .tsv .ods .xlsx .xls). Use Load any File node to load a file as base64. Internally uses pandas to load spreadsheet files. All lists uses is_output_list=True (indicated by the symbol 𝌠) and will be processed sequentially by corresponding nodes.

    Inputs

    | Name | Type | Description | | --- | --- | --- | | rows_and_cols | STRING | Indices and names of rows and columns in the spreadsheet. Note that in spreadsheets rows start at 1, columns start at A, whereas OutputLists are 0-based (in select-nth). | | header_rows | INT | Ignore the first x rows in the list. Only used if you specify a col in rows_and_cols. | | header_cols | INT | Ignore the first x cols in the list. Only used if you specify a row in rows_and_cols. | | select_nth | INT | Only select the nth entry (0-based). Useful in combination with the PrimitiveInt+control_after_generate=increment pattern. | | string_or_base64 | STRING | CSV/TSV string or spreadsheet file in base64 (for .ods .xlsx .xls). Use Load Any File node to load a file as base64. |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | list_a | STRING𝌠 | | | list_b | STRING𝌠 | | | list_c | STRING𝌠 | | | list_d | STRING𝌠 | | | count | INT | Number of items in the longest list. |

    OutputLists Combinations

    OutputLists Combinations

    (workflow included)

    Takes up to 4 OutputLists and generates all combinations between them and emits each combination as separate items.

    Example:

    [1, 2, 3] x ["A", "B"] = [(1, "A"), (1, "B"), (2, "A"), (2, "B"), (3, "A"), (3, "B")]

    unzip_a .. unzip_d uses is_output_list=True (indicated by the symbol 𝌠) and will be processed sequentially by corresponding nodes.

    All lists are optional and empty lists will be ignored.

    Technically it computes the Cartesian product and outputs each combination splitted up into their elements (unzip), whereas empty lists will be replaced with units of None and they will emit None on the respective output.

    Example:

    [1, 2] x [] x ["A", "B"] x [] = [(1, None, "A", None), (1, None, "B", None), (2, None, "A", None), (2, None, "B", None)]

    Inputs

    | Name | Type | Description | | --- | --- | --- | | list_a | * | (optional) | | list_b | * | (optional) | | list_c | * | (optional) | | list_d | * | (optional) |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | unzip_a | *𝌠 | Value of the combinations corresponding to list_a. | | unzip_b | *𝌠 | Value of the combinations corresponding to list_b. | | unzip_c | *𝌠 | Value of the combinations corresponding to list_c. | | unzip_d | *𝌠 | Value of the combinations corresponding to list_d. | | index | INT𝌠 | Range of 0..count which can be used as an index. | | count | INT | Total number of combinations. |

    XYZ-GridPlot

    XYZ-GridPlot

    (workflow included)

    Generate a XYZ-Gridplot from a list of images. It takes a list of images (including batches) and will flatten the list first (thus batch_size=1). The shape of the grid is determined:

    1. by the number of row labels
    2. by the number of column labels
    3. by the remaining sub-images. You can use order=inside_out to reverse how the images are selected. Sub-images (usually from batches) will be shaped into the most square area (the "sub-image packing"), unless output_is_list=True in which case a list of image grids will be created instead. You can use this list to connect another XyzGridPlot node to create super-grids.

    For the column label areas the width is determined by the width of the sub-image packing, the height is determined by font_size or half image_height (whichever is greater). For the row label areas the width is also determined by the width(!) of the sub-images packing (with a minimum of 256px), the height is determined by height of the sub-images. The text will be shrunk down until it fits (up to font_size_min=6) and the same font size will be used for the whole axis (column labels/row labels). If the font size is already at the minimum, any remaining text will be clipped (reasoning: the lower part of a prompt is usually not that important).

    Inputs

    | Name | Type | Description | | --- | --- | --- | | images | IMAGE | A list of images (including batches) | | row_labels | STRING | The text used for the row labels at the left side | | col_labels | STRING | The text used for the column labels at the top | | gap | INT | The gap between the sub-image packing. Note that within the sub-images themselves no gap will be used. If you want a gap between the sub-images connect another XyzGridPlot node. | | font_size | FLOAT | The target font size. The text will be shrunk down until it fits (up to font_size_min=6). | | order | BOOLEAN | Defines in which order the images should be processed. This is only relevant if you have sub-images. | | output_is_list | BOOLEAN | This is only relevant if you have sub-images or you want to create super-grids. |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | image | IMAGE𝌠 | The XYZ-GridPlot image. If output_is_list=True it will be a list of images which you can connect to another XYZ-GridPlot node to create super-grids. |

    Formatted String

    Formatted String

    (workflow included)

    Uses python str.format() internally, see Python - Format String Syntax .

    • Use {a:.2f} to round off a float to 2 decimals.
    • Use {a:05d} to pad up to 5 leading zeros to fit with comfys filename suffix ComfyUI_00001_.png.
    • If you want to write { } within your strings (e.g. for JSONs) you have to double them like so: {{ }}.

    Inputs

    | Name | Type | Description | | --- | --- | --- | | fstring | STRING | Uses python str.format() internally, see Python - Format String Syntax . * Use {a:.2f} to round off a float to 2 decimals. * Use {a:05d} to pad up to 5 leading zeros to fit with comfys filename suffix ComfyUI_00001_.png. * If you want to write { } within your strings (e.g. for JSONs) you have to double them like so: {{ }}. | | a | * | (optional) value that will be as a string at the {a} placeholder. | | b | * | (optional) value that will be as a string at the {b} placeholder. | | c | * | (optional) value that will be as a string at the {c} placeholder. | | d | * | (optional) value that will be as a string at the {d} placeholder. |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | string | STRING | The formatted string with all placeholders replaced with their respective values. |

    Convert To Int Float Str

    Convert To Int Float Str

    (workflow included)

    Convert anything number-like to INT FLOAT STRING. Uses nums_from_string.get_nums internally which is very permissive in the numbers it accepts. Anything from actual ints, actual floats, ints or floats as strings, strings that contains multiple numbers with thousand-separators. int, float and string uses is_output_list=True (indicated by the symbol 𝌠) and will be processed sequentially by corresponding nodes.

    Inputs

    | Name | Type | Description | | --- | --- | --- | | number | * | Anything that can be meaningfully converted to a string |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | int | INT𝌠 | All the numbers found in the string with the decimals truncated. | | float | FLOAT𝌠 | All the numbers found in the string as floats. | | string | STRING𝌠 | All the numbers found in the string as floats converted to string. | | count | INT | Amount of numbers found in the full list. |

    Load Any File

    Load Any File

    (workflow included)

    Load any text or binary file and provide the file content as string or base64 string and additionally try to load it as a IMAGE.

    Inputs

    | Name | Type | Description | | --- | --- | --- | | annotated_filepath | STRING | Base directory defaults to input directory. Use suffix [input] [output] or [temp] to specify a different ComfyUI user directory. |

    Outputs

    | Name | Type | Description | | --- | --- | --- | | string | STRING | File content for text files, base64 for binary files. | | image | IMAGE | Image batch tensor. | | mask | MASK | Mask batch tensor. |

    Examples

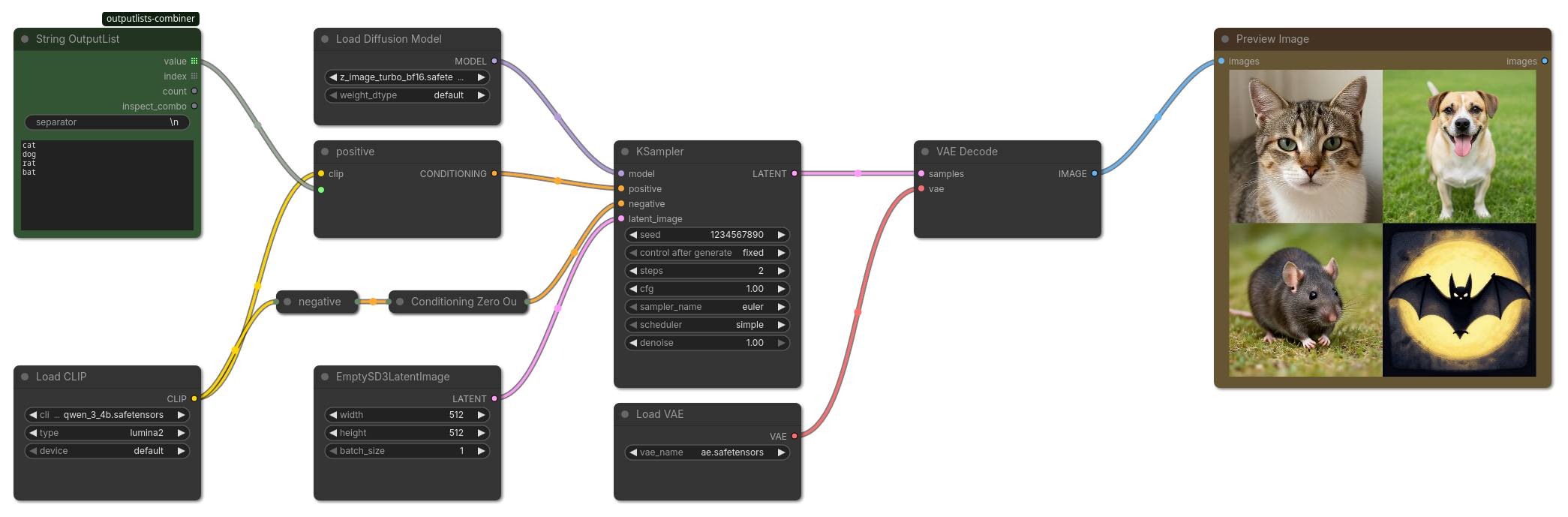

    Simple OutputList

    Simple OutputList example

    (workflow included)

    Just uses a String OutputList to separate a string and produce 4 images in one run.

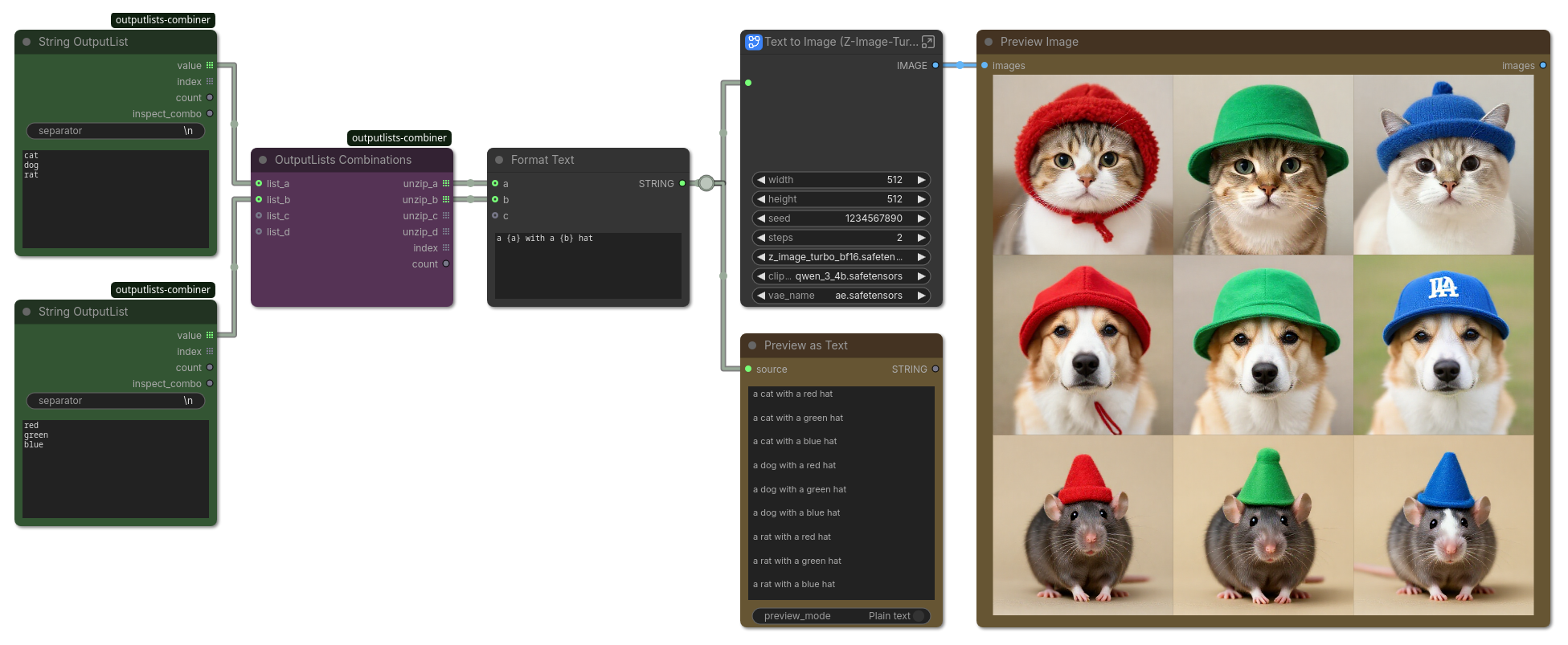

    Combine prompts

    Combine prompts example

    (workflow included)

    Combines two String OutputList with a OutputList Combinations and merges them into the prompt with Formatted String. It iterates over all combinations of [cat, dog, rat] x [red, green, blue] = 3 x 3 = 9)

    To debug strings it's recommended to use comfyui-custom-scripts Show Text as it outputs a new line for each emitted item.

    Combine numbers

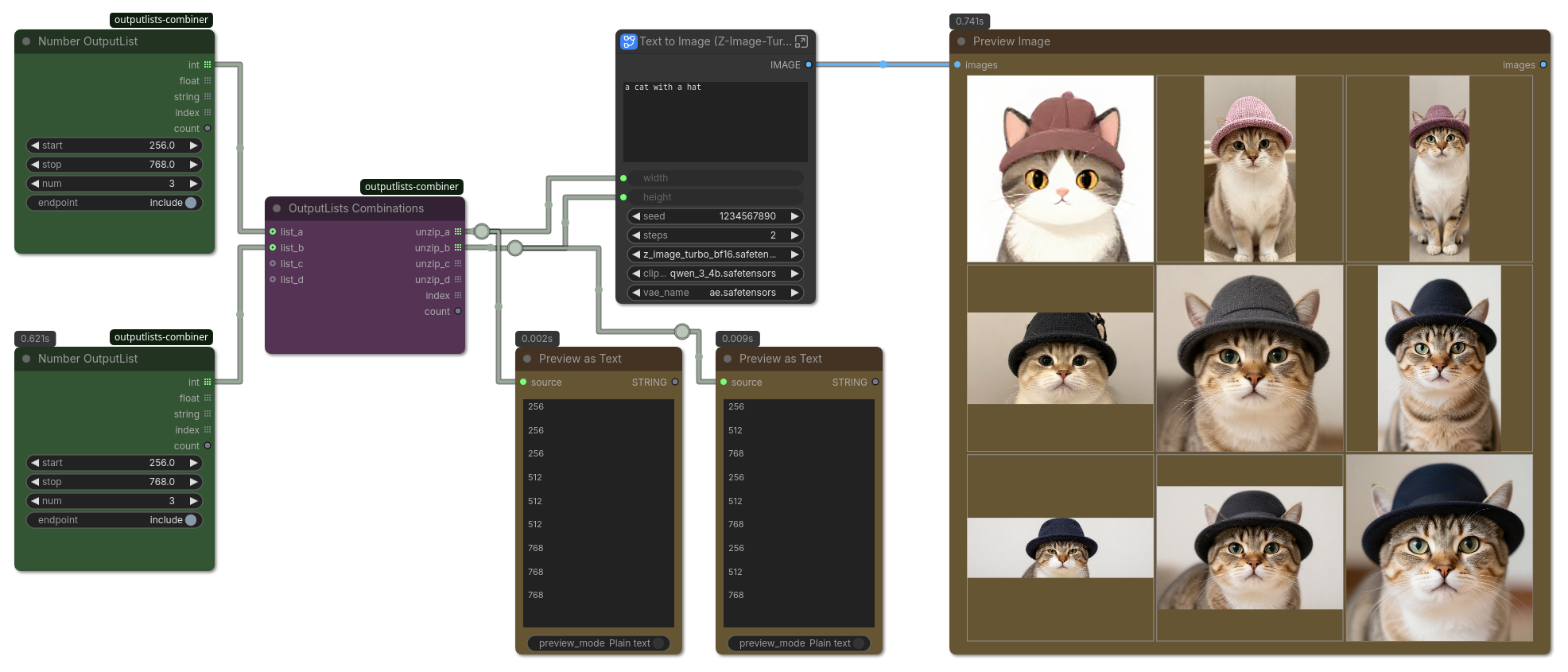

    Combine numbers example

    (workflow included)

    Makes use of Number OutputList to generate the number ranges [256, 512, 768] x [768, 512, 256] and connects them to the image width and height to produce image variants in portrait, square and landscape.

    Notice that images within a batch always have to be same width and height, wheras here each image has a different image size. This is only possible because it is a list of images.

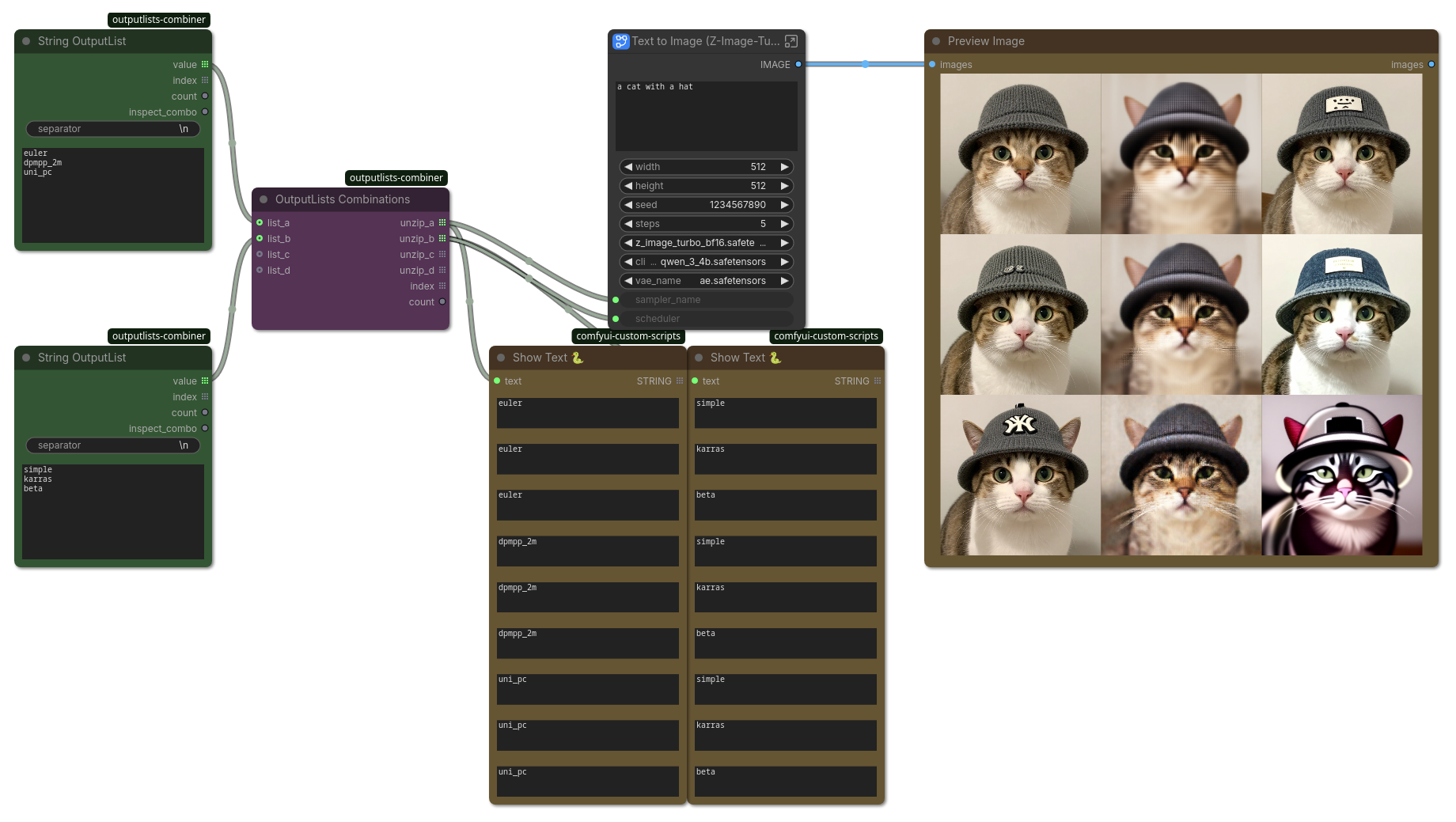

    Combine samplers and schedulers

    Combine samplers and schedulers example

    (workflow included)

    https://github.com/user-attachments/assets/d8da27b9-99d2-4ac5-a6ed-d368d2ae1a38

    Makes use of inspect_combo to populate the String OutputList (unneeded entries were deleted) and connects to the COMBO inputs samplers and schedulers. It iterates over all combinations of [euler, dpmpp_2m, uni_pc_bh2] x [simple, karras, beta] = 3 x 3 = 9)

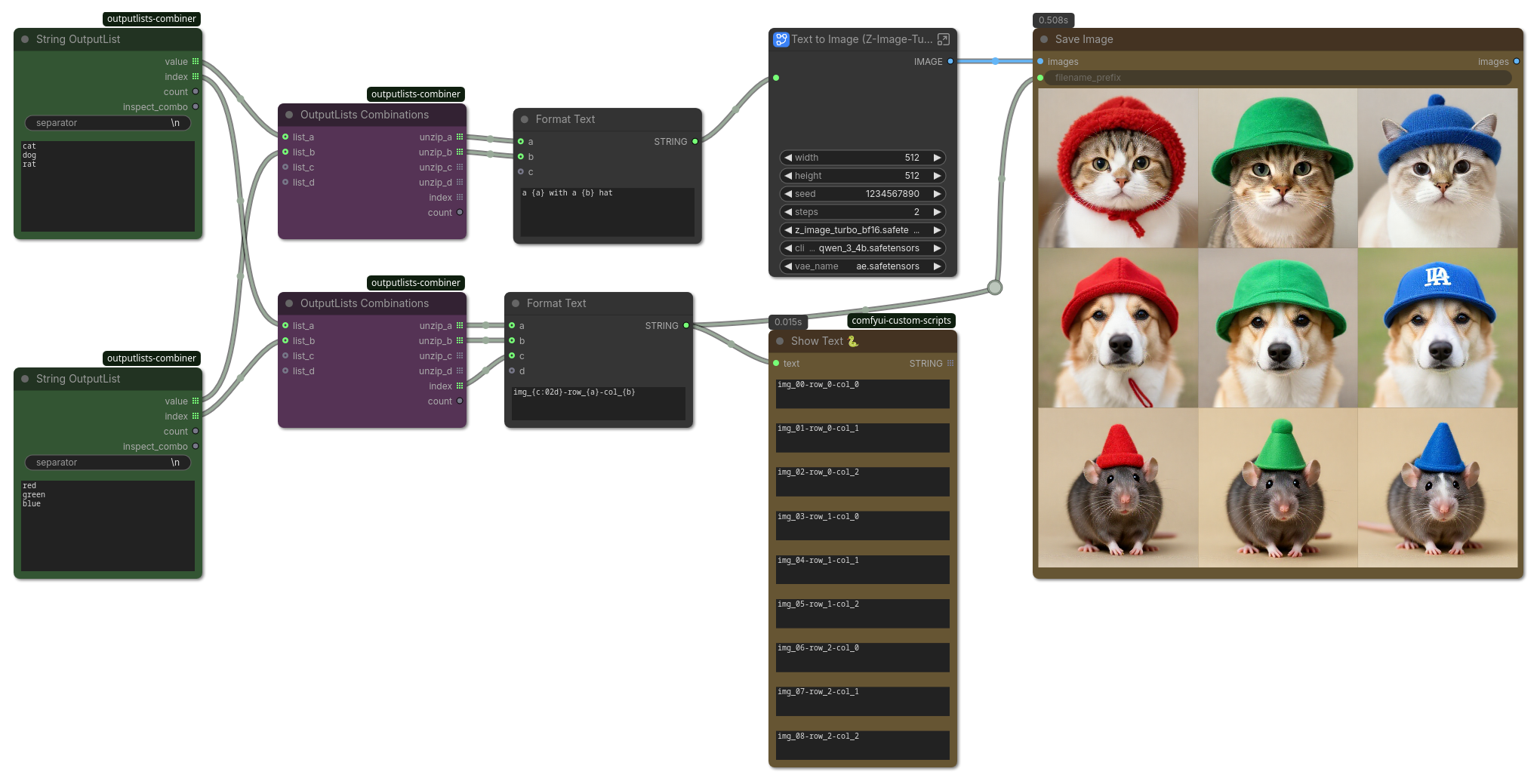

    Combine row/column for filename

    Combine row/column for filename example

    (workflow included)

    Makes use of the index combined the same way as the prompts, which gives as the rows and columns. Formatted String produces the filename prefix img_{c:02d}_row_{ad}_col_{b}.

    Compare LoRA-model and LoRA-strength

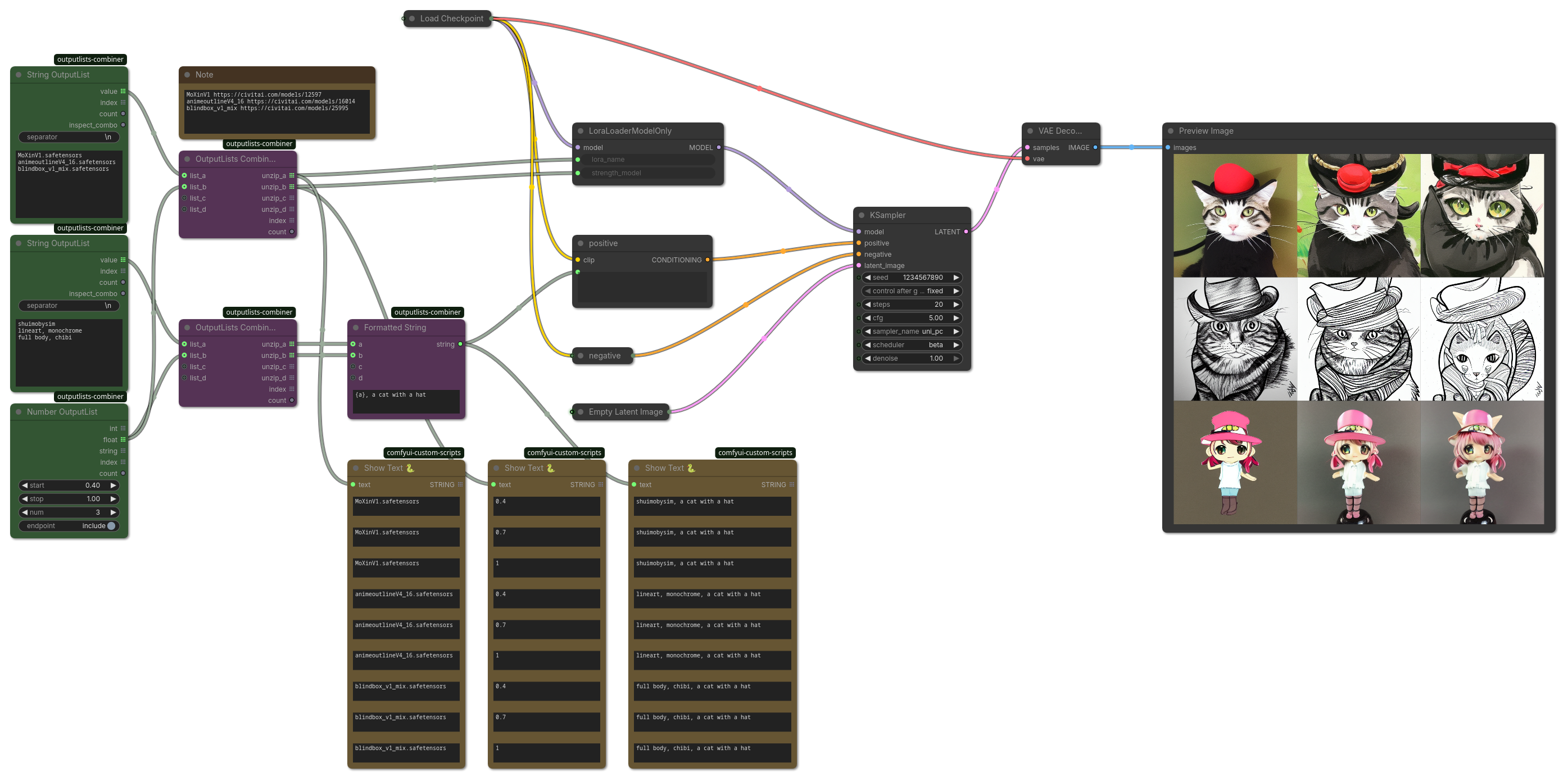

    Combine LoRA-model and LoRA-strength example

    (workflow included)

    https://github.com/user-attachments/assets/d8da27b9-99d2-4ac5-a6ed-d368d2ae1a38

    Makes use of inspect_combo to populate the String OutputList with the model names (unneeded entries were deleted), and a corresponding String OutputList with the trigger words. Both OutputLists are combined with a Number OutputList each to iterate over all combinations of [modelA, modelB, modelC] x [0.4, 0.7, 1.0] = 3 x 3 = 9 and [triggerA, triggerB, triggerC] x [0.4, 0.7, 1.0] = 3 x 3 = 9, so they are in-sync. The LoRA filename and LoRA strength are connected with the LoRA Model Loader, and the trigger word is used to construct a prompt in Formatted String.

    If you don't need separate trigger words, just delete the second combination altogether, it's much simpler this way!

    It might be a little confusing why we need two combinations here, but it is important that the lists are synchronized. Ideally we would only construct a single combination with pairs of [(modelA, triggerA), (modelB, triggerB), (modelC, triggerC)] x lora-strengths but then we would need to deconstruct the (modelX, triggerX) pairs later.

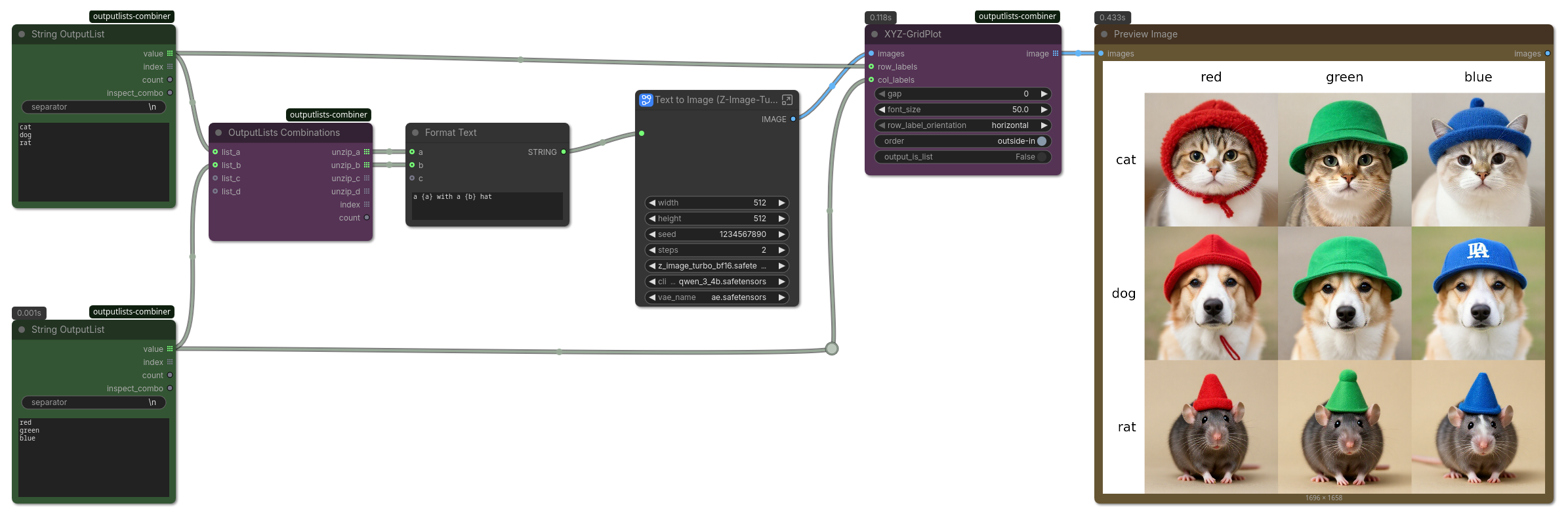

    XYZ-GridPlot

    XYZ-GridPlot example

    Uses String OutputLists + OutputLists Combinations + Formatted String to generate multiple prompts for an image grid. The values of the String OutputLists are directly used as labels for the XYZ-GridPlot and they also define how the grid should be shaped.

    Note that batch_size=1 and output_is_list=False. If you set batch_size=4 you get a image grid with the batch as sub-grids. If you also set output_is_list=True the sub-images will not be arranged together but you will get 4 separate images instead.

    https://github.com/user-attachments/assets/a649b701-58a5-47a8-b697-e2a34a39c999

    Advanced Examples

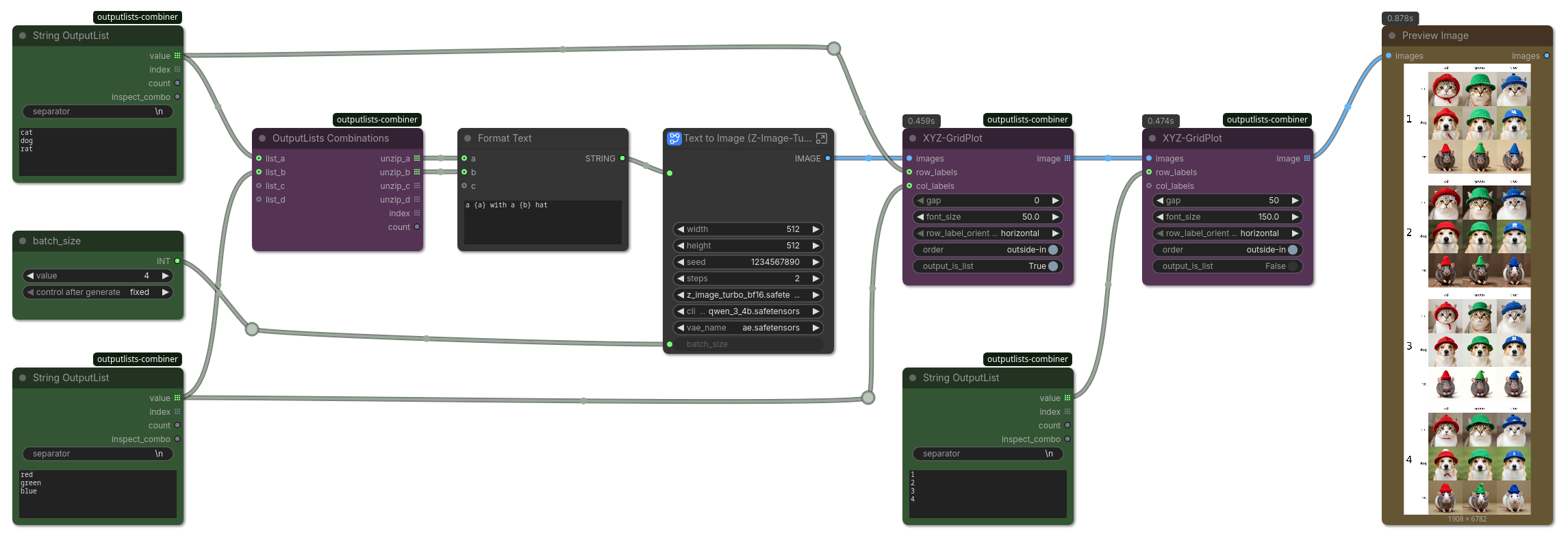

    XYZ-GridPlots with Supergrids

    I recommend to start ComfyUI with --cache-ram for this example if you want to experiment with the settings alot!

    XYZ-GridPlots with Supergrids example

    (workflow included)

    Uses two XYZ-GridPlot in sequence to put one image grid inside the other. For more complex image grids the question always is: How should the axis be ordered and in which way the images be shuffled, e.g. do we want to show cat|dog|rat x red|blue|green and then the batch next to each other in a subgrid (RxCxB), or four separate images each with a grid of cat|dog|rat x red|blue|green (BxCxR). To achieve this you can play around with the options order=outside-in|inside-out and output_is_list=False|True, but make sure the row_labels and col_labels match what you want to achieve, as this info is also used how the grid is shaped.

    Immediately save intermediate images of image grid

    One thing you may have noticed when you make a large image grid is that you have to wait for ALL intermediate images to be processed before anything is saved and the grid created. Thus you could loose a lot of processed images when something happens or you cancel the job (though ComfyUI keeps them in cache and should pick up immediately). If you want to save the intermediate images after each step you can use the KSampler immediate Save Image beta-node. For this node to be visible in the node searchbox you need to activate Settings -> Comfy -> Show experimental nodes in search.

    Custom nodes:

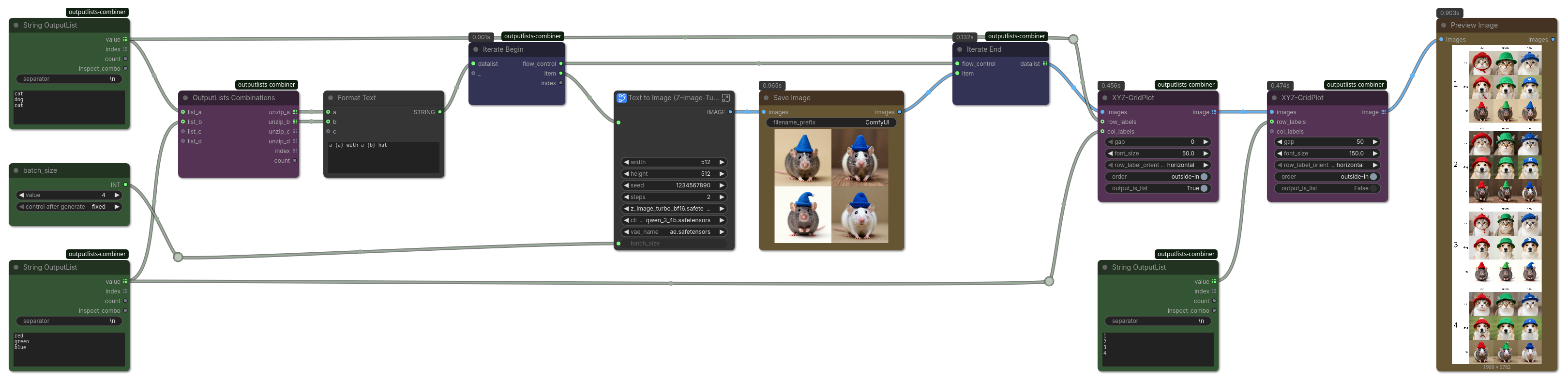

    ImageGrids example

    (workflow included)

    Technically this node is implemented as a node expansion and uses the default KSampler, VAE Decode and Save Image.

    • TODO Update workflow with new XYZ-GridPlot node
    • TODO I'm not happy that this node exists at all as I wanted to avoid custom KSampler nodes. Unfortunately I haven't found a way to use subgraphs to force immediate processing yet.

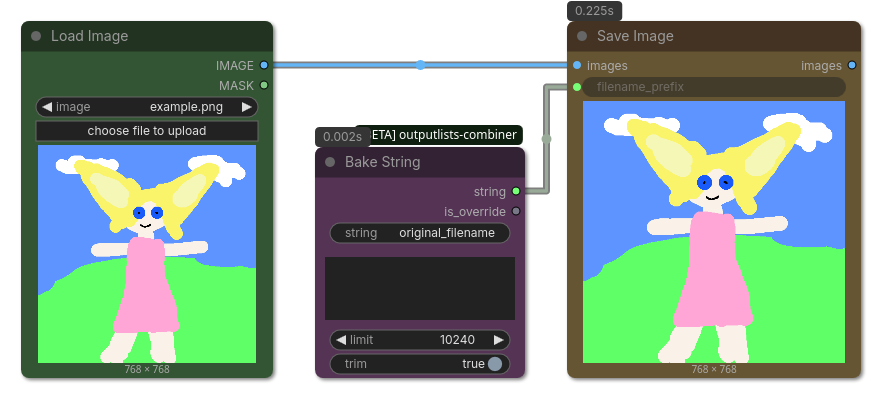

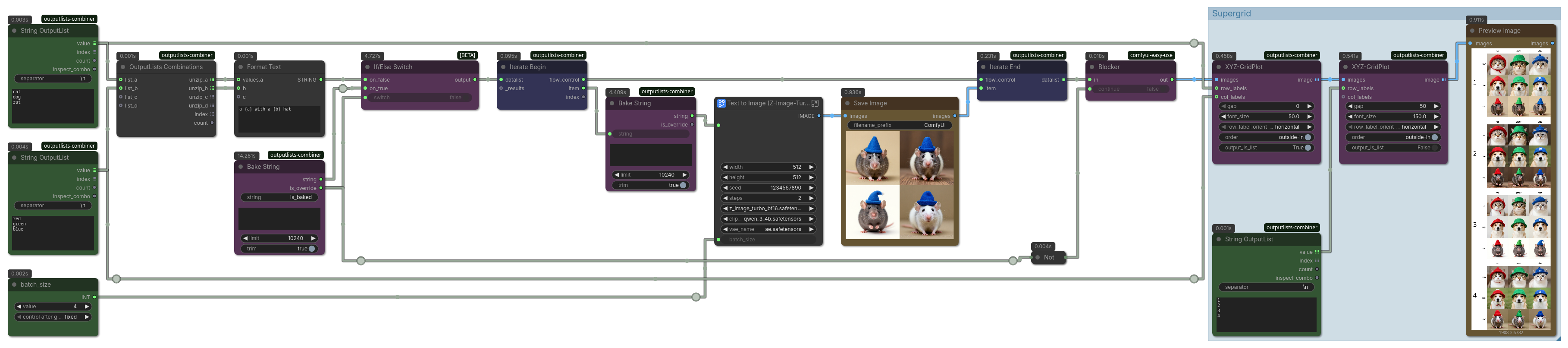

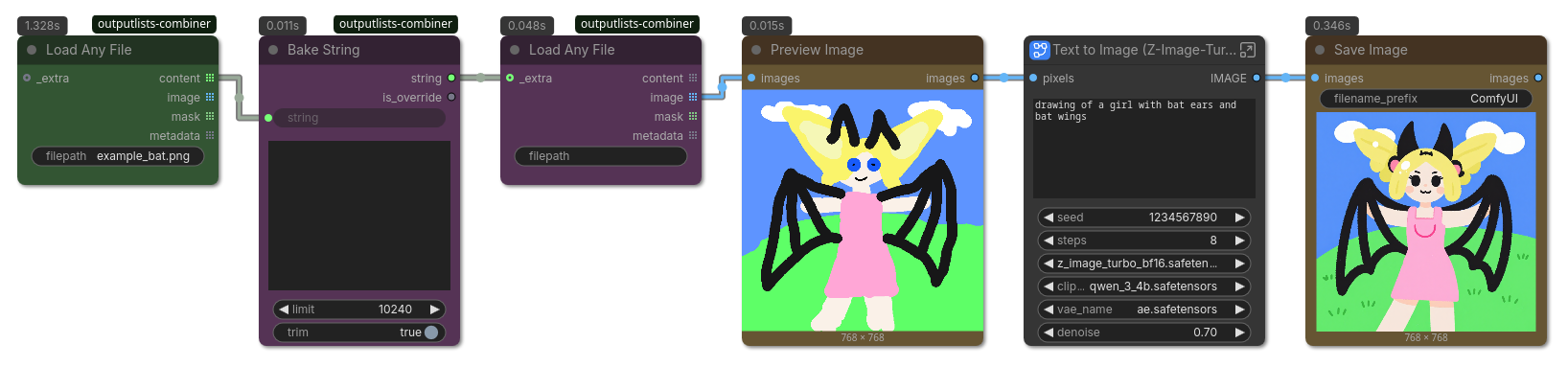

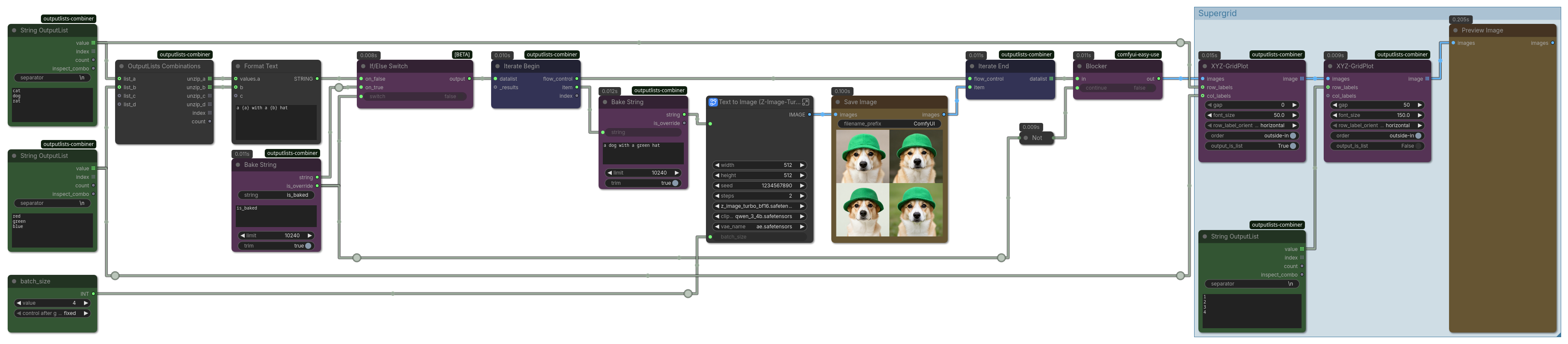

    Baking Values Into Workflow

    Custom nodes:

    You may have noticed when you load the workflow from one of the grid images it contains the workflow for the whole grid, not the individual image, but sometimes you want to know which exact prompt or values resulted in this image. Thus we need store the individual values in the metadata. The following workflow makes use of Crystools' Save image with Metadata and Load image with Metadata and Impact-Pack's Select Nth Item.

    Save Index in Metadata example

    (workflow included)

    Uses the index of the combined list to store it as a JSON. It also uses the index of the individual lists combined the same way as the prompts, which gives as the rows and columns, for additional information, including the prompt: {{ "prompt": "{a}", "index": {b}, "row": {c}, "col": {d} }}

    Load Index from Metadata example

    (workflow included)

    This example reads the index from the metadata with Load Image with Metadata and selects the index using Select Nth Item.

    It's is not perfect because in the end you still have to manually put the image in Load Image and hook up the values from Select Nth Item to get this one exact image. If you work a lot with image grids you might want to include both of this patterns in one workflow.

    • TODO This is unsatisfactory and requires a lot of manual work
    • TODO If someone knows a native way include metadata please let me know (node expansion?, hidden extra pnginfo?, dynprompt?)!

    Load all images from grid

    Custom nodes, one of the following:

    Let's say you generated a lot of images for your grid and (hopefully) stored them with some clever naming scheme, e.g. cell_{c:02d}-{a}-{b} like in the previous example. Now you need to load them from the output folder, without accidentally loading any other images. This uses the same prompt combination as before but uses the string to load the image filename. The following workflow makes use of one of these Load Image by Path nodes,

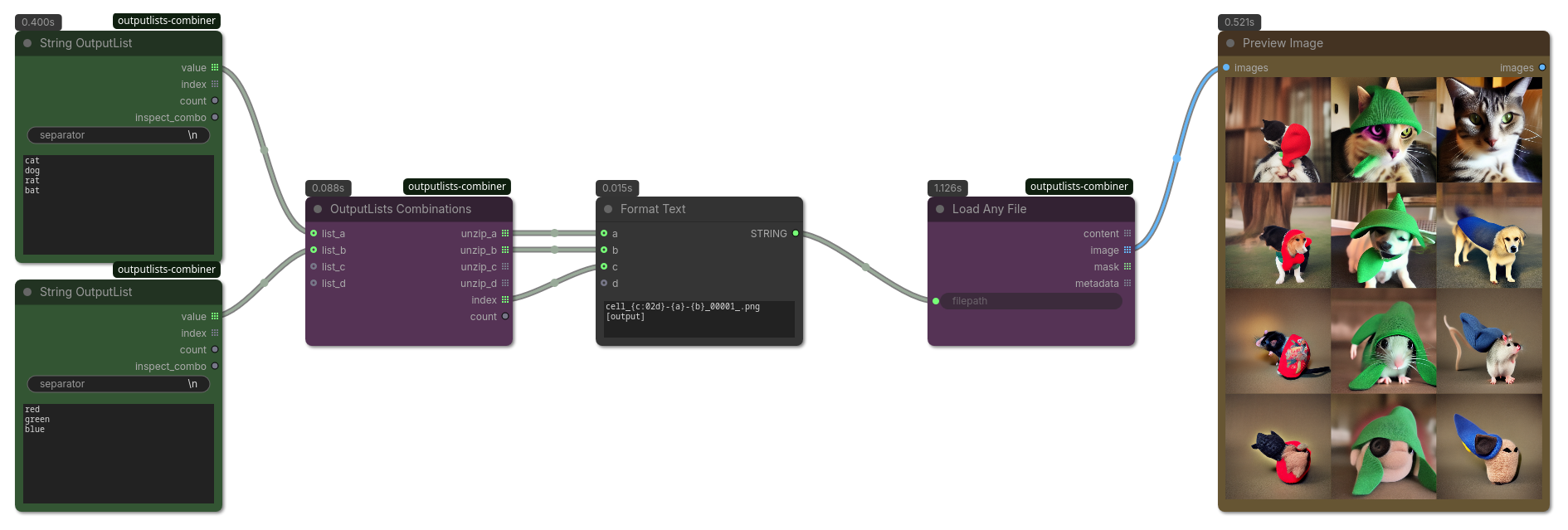

    Load Image with Formatted String

    (workflow included)

    TODO Make the combo work with native Load Image (but my string to any approach always resulted in NoneType object has no attribute 'endsWith'). I filled a bugreport https://github.com/comfyanonymous/ComfyUI/issues/11017

    Iterate prompts from PromptManager

    Custom nodes:

    PromptManager keeps track of all the prompt you generated in a database which you can annotate with tags and categories. The following workflow allows you to search by text, tags and categories to get selection of the prompts and iterate them.

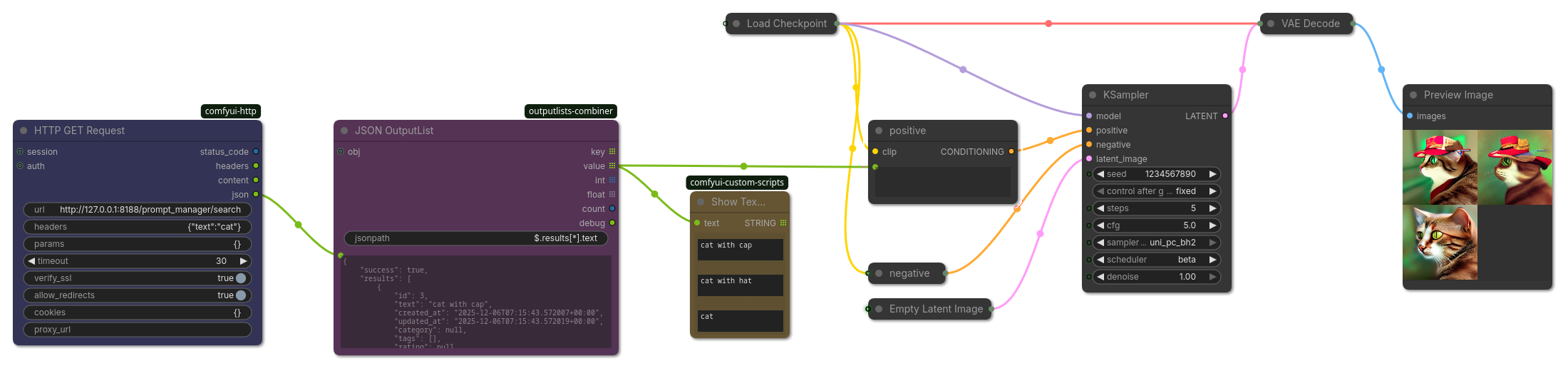

    Load prompts with GET HTTP and extract JSON with JSON OutputList

    (workflow included)

    Makes use of ComfyUI-HTTP's HTTP GET Request to call PromptManager's search API route and JSON OutputList to extract the text field using a JSONPath. The prompts are emitted as an OutputList and will be processed sequentially.
