Advanced Latent Control

ComfyUI-Advanced-Latent-Control

This custom nodes helps to transform latent in different ways.

You can access new features earlier by switching from the master branch to dev, but you need to remember that there may be some issues on the dev branch and some nodes' behavior may change after release.

Latent mirror

This node can flip latent and merge original and flipped version.

Input:

• latent

Fields:

• direction – can be vertically, horizontally or both
• multiplier – multiply latent by specified number

Output:

• latent

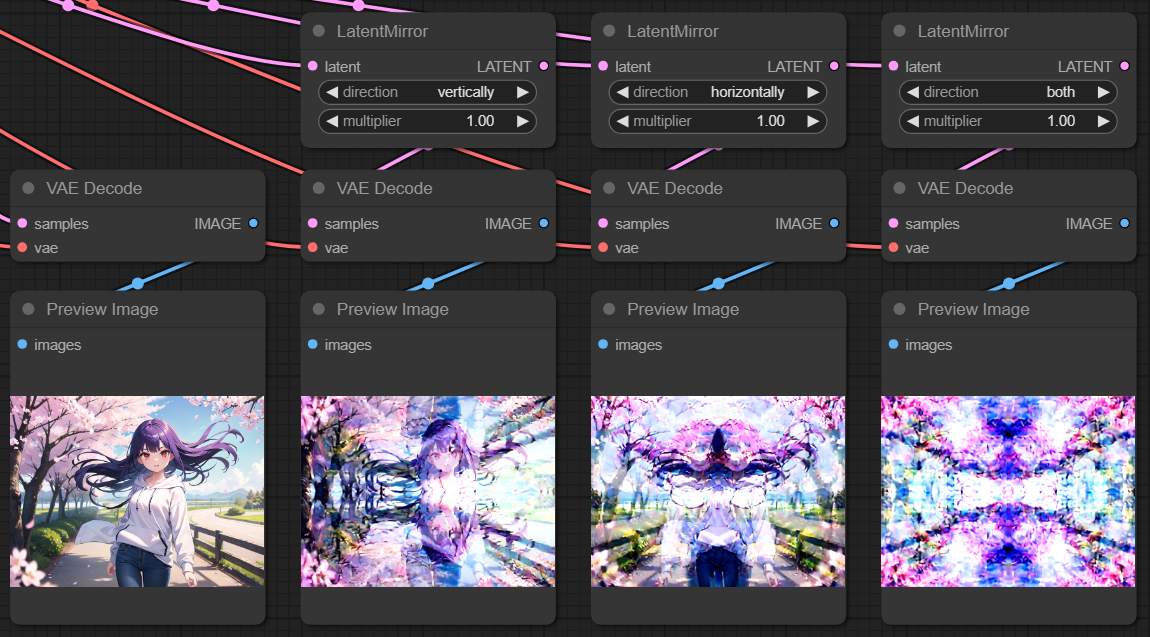

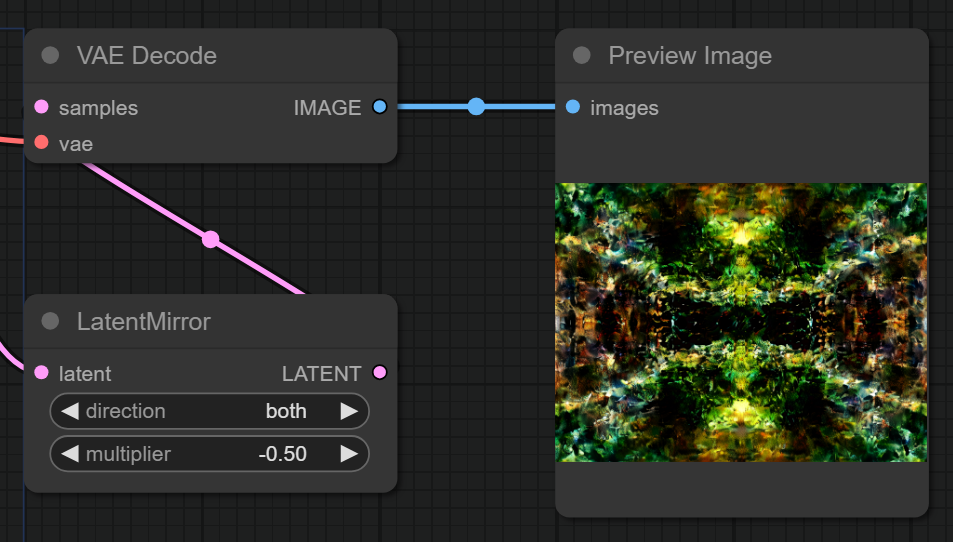

Usage:

Latent shift

This node can shift latent along x and y-axis.

Input:

• latent

Fields:

• x_shift – a number between -1 and 1 that indicates how much the latent should be shifted
• y_shift – a number between -1 and 1 that indicates how much the latent should be shifted

Output:

• latent

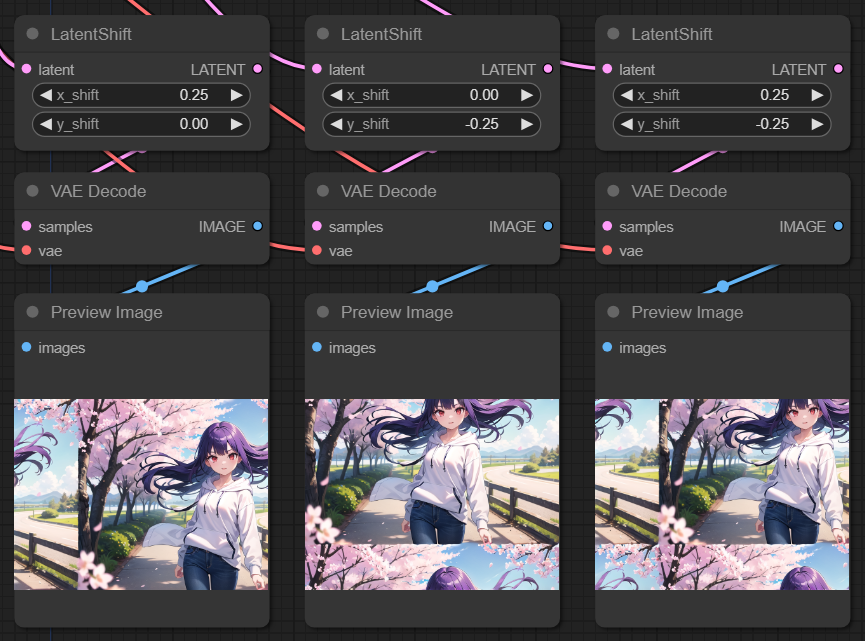

Usage:

~~TSampler with transforms (Latent Control)~~

Removed from version 2.0.0

TSampler (Latent Control)

This node allows to combine a lot of transforms with different parameters.

Input:

• base KSampler fields
• transform_optional – field that can take output from one of those nodes: Mirror transform, Shift transform, Multiply transform or Combine transforms

Fields: exactly matches the base KSampler

Output: exactly matches the base KSampler

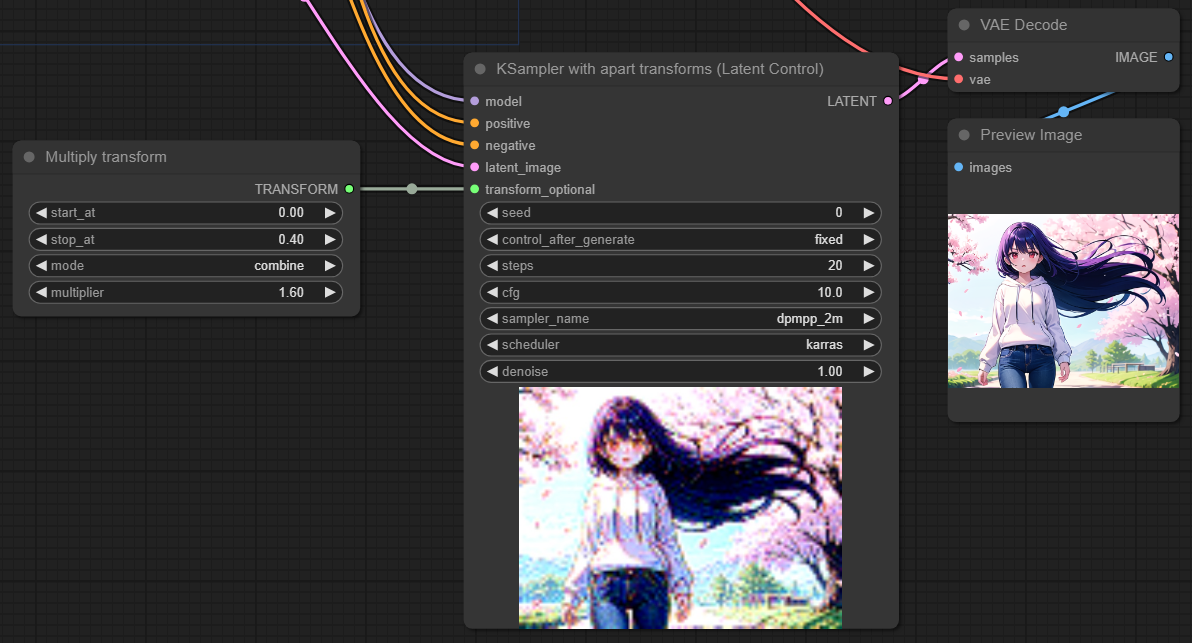

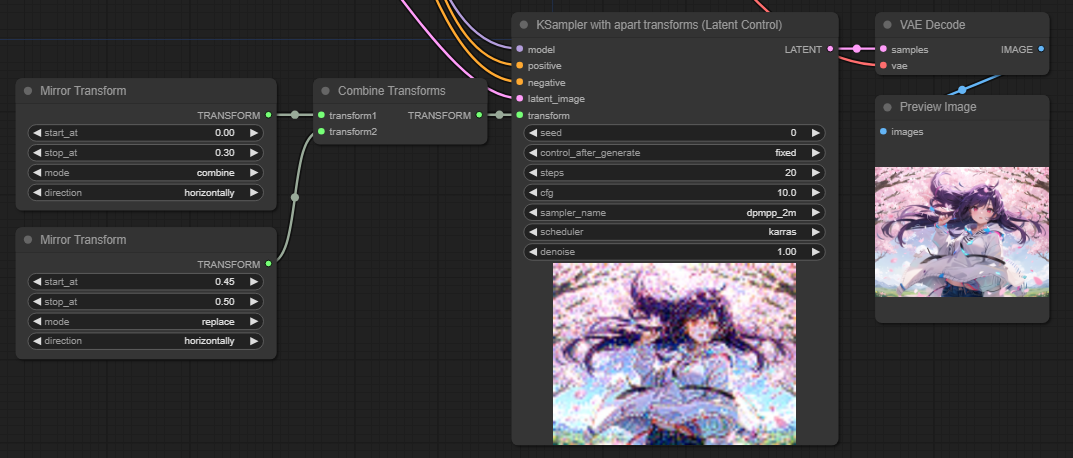

Usage:

Multiply, Mirror and Shift transform nodes parameters exactly match the corresponding KSampler with transforms (Latent Control) parameters.

There are two new transform nodes:

• Latent add
• Latent interpolate

They work exactly the same as LatentAdd and LatentBlend nodes from standard node pack, but also, can multiply result by specified number.

Offset

You can apply specific offset for transform nodes.

Fields:

• process_every – a number that indicates which steps will be processed
• offset – a number that indicates offset for previous parameter. For example: if process_every is 4 and offset is 0, sampler apply transformation with this pattern: 0 0 0 1. This pattern will repeat again and again. If offset is 2, pattern will be 0 1 0 0, if -1 – 1 0 0 0.
• mode – can be process_every or skip_every. For example, with skip_every previous pattern (0 0 0 1) turn into this: 1 1 1 0

Output:

• offset

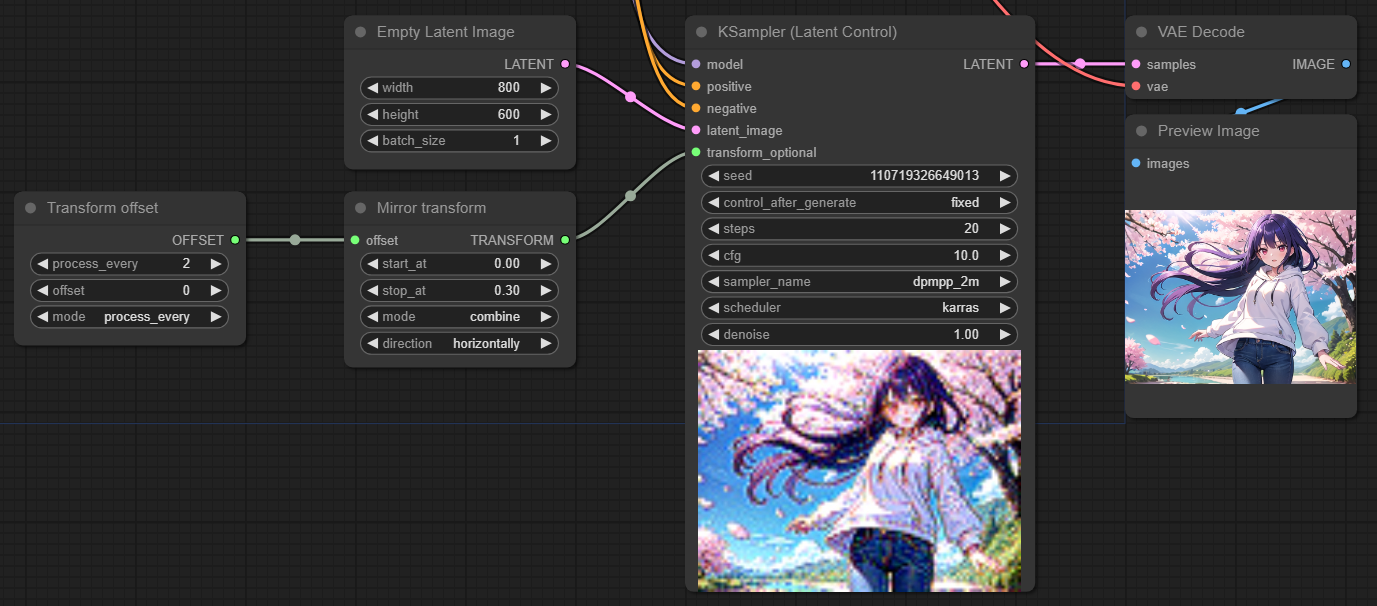

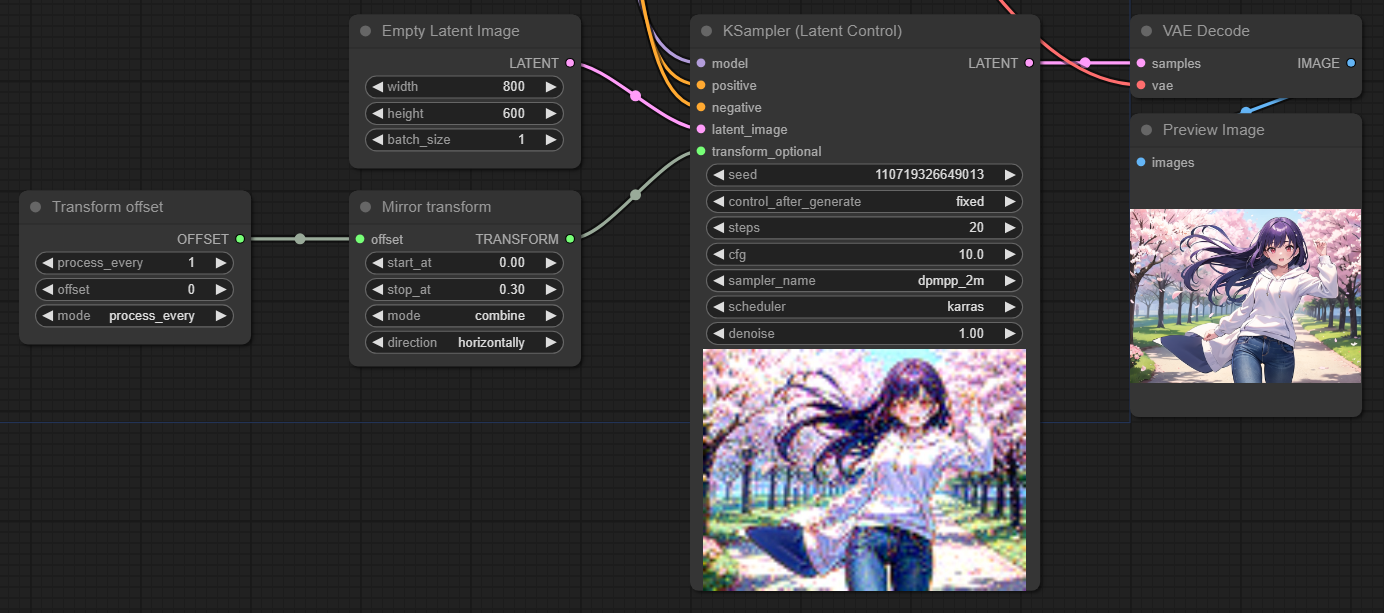

Usage:

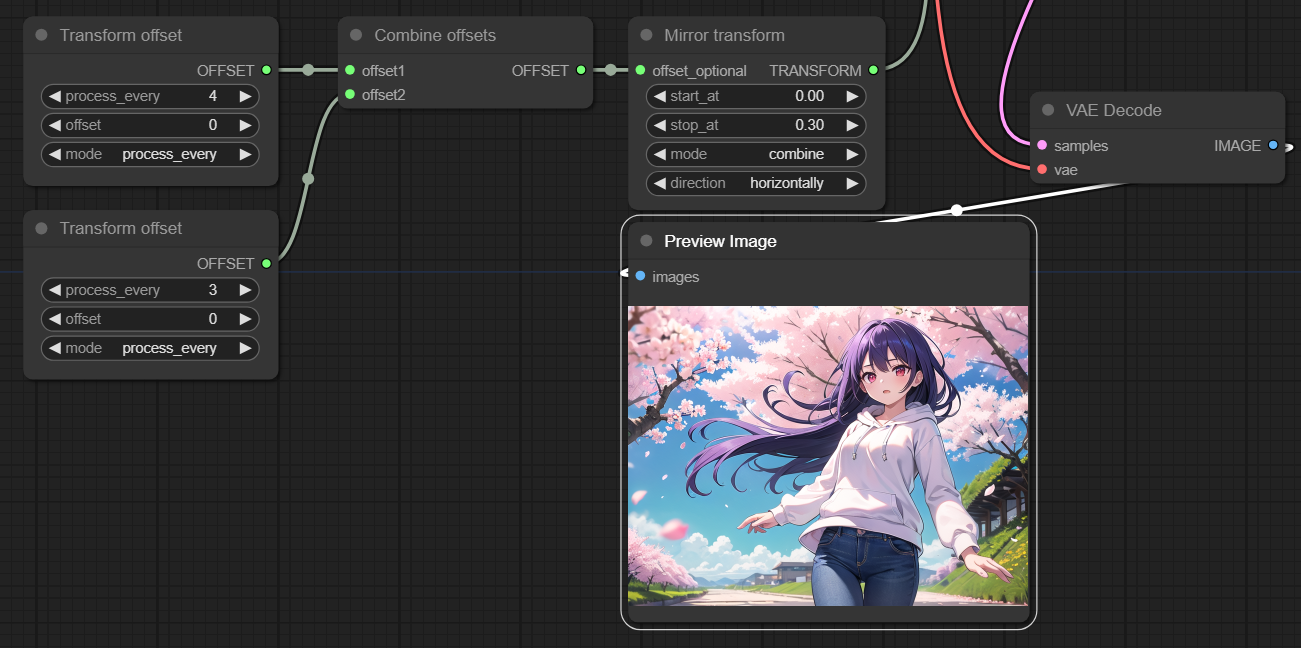

You can combine different offsets to achieve interesting patterns. For example:
0 0 0 1 and 0 0 1 give this pattern: 0 0 1 1 0 1 0 1 1 0 0 1.

One time nodes

Each transform node has own one-time version. They allow to make one transform action at specified step.

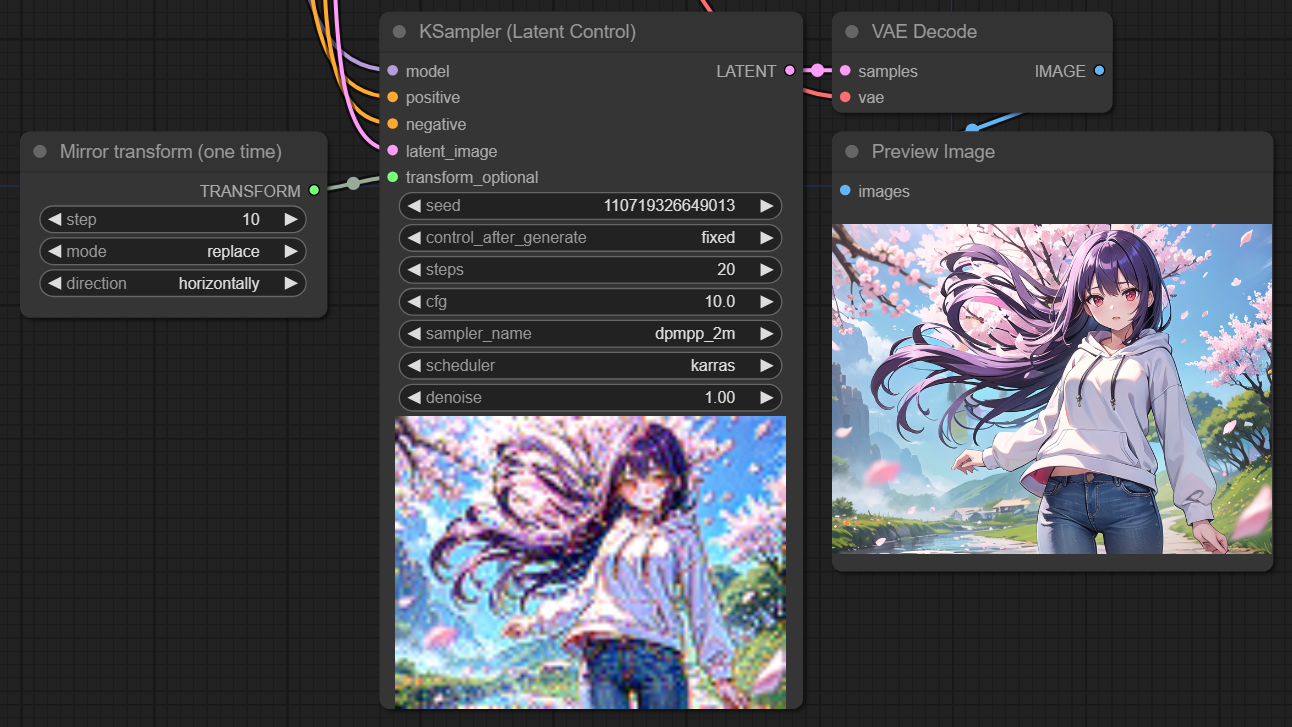

Usage:

Latent normalize

Fixes some issues when sampling modified latent space.

Input:
exactly matches the VAE Decode node

Output:

• latent

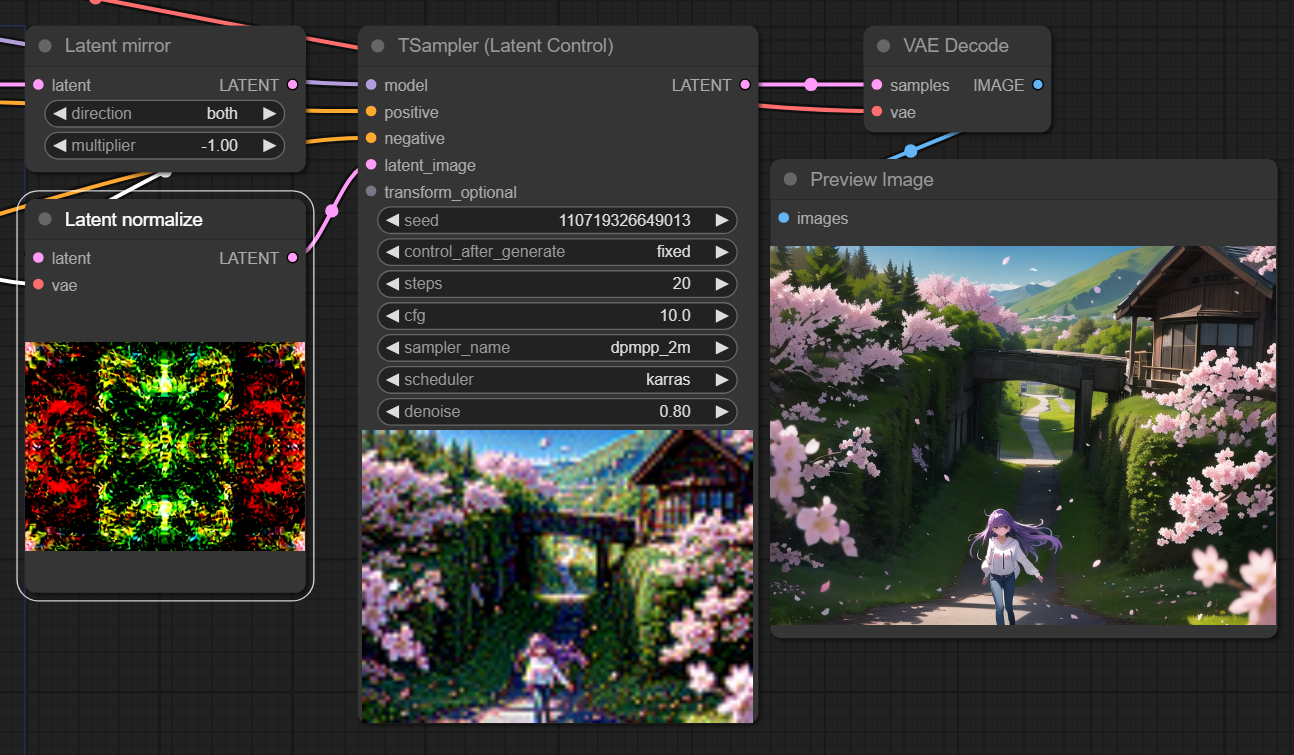

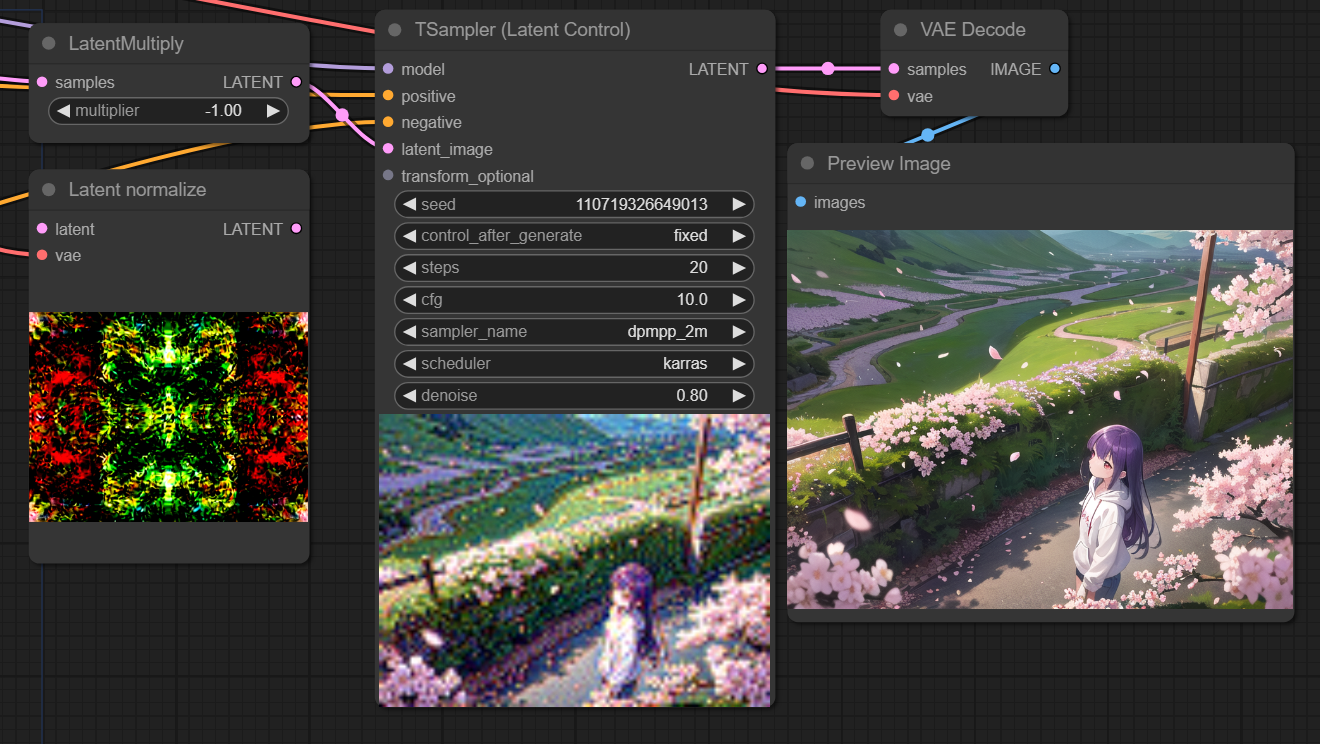

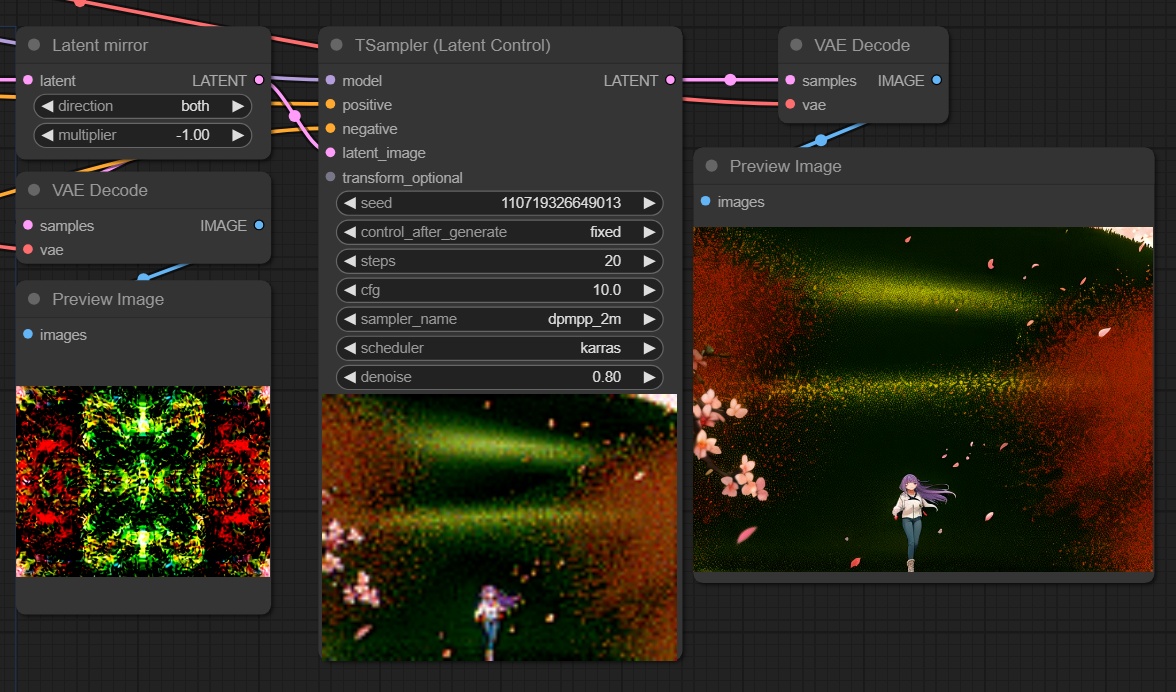

When you multiply latent by negative or big positive (bigger than 2) number and paste this latent in sampler, you can see that the image will be generated very poorly. This is because stable diffusion cannot work with such set of numbers (meaning the numbers contained in latent).

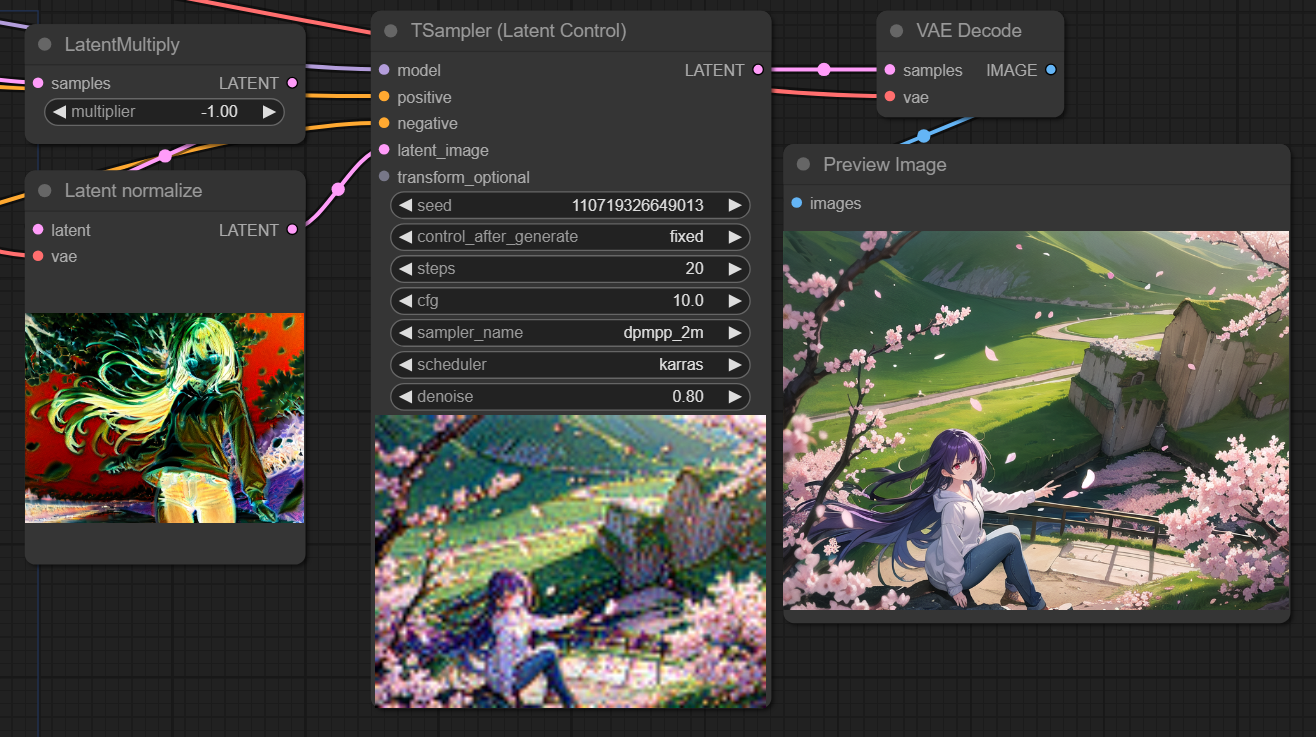

But you can prevent this behavior by sequential decode and encode latent using vae. Node Latent normalize make this process easier.

This node also change some results even if output without this node looks good.

And it very slightly changes results from latent, which have not been modified.

Transform hijack

Allow you to use transforms with any samplers that you like.

Instead of patching the latent, this node patches the model: it attaches the transforms to a cloned model via a sampler post-cfg hook. Connect the returned model to any sampler (KSampler, KSamplerAdvanced, custom sampler nodes, etc.) and the transforms will be applied during sampling.

Inputs:

• model
• transforms

Outputs:

• model

Usage:

Breaking change in 3.0.0: Transform hijack now takes and returns a MODEL instead of a LATENT. This replaces the old global common_ksampler monkey-patch, which conflicted with the stock KSampler and other custom nodes. Rewire this node to your model input/output after updating.
