ComfyUI-Grounding

Grounding toolbox

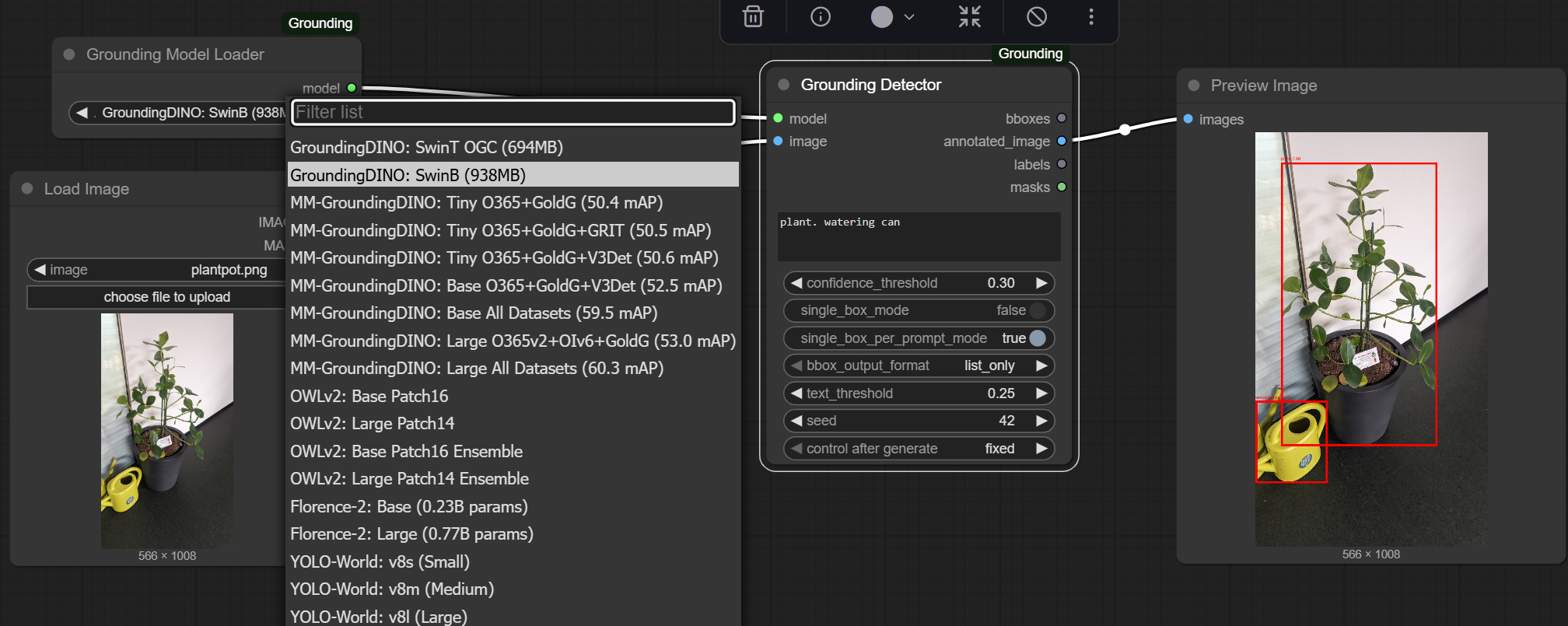

Simple Workflow

🎯 8 Nodes Total - 2 Loaders + 2 Detectors + 2 SAM2 + 2 Utilities

🚀 6 Model Families - GroundingDINO, MM-GroundingDINO, OWLv2, Florence-2, YOLO-World, SA2VA

🤖 33 Models - 19 bbox detection + 6 mask generation + 8 SAM2 variants

💾 Smart Caching - Instant reload

📦 Batch Processing - Multiple images at once

🎭 Built-in Masks - No separate BboxToMask node needed

Visual Demos

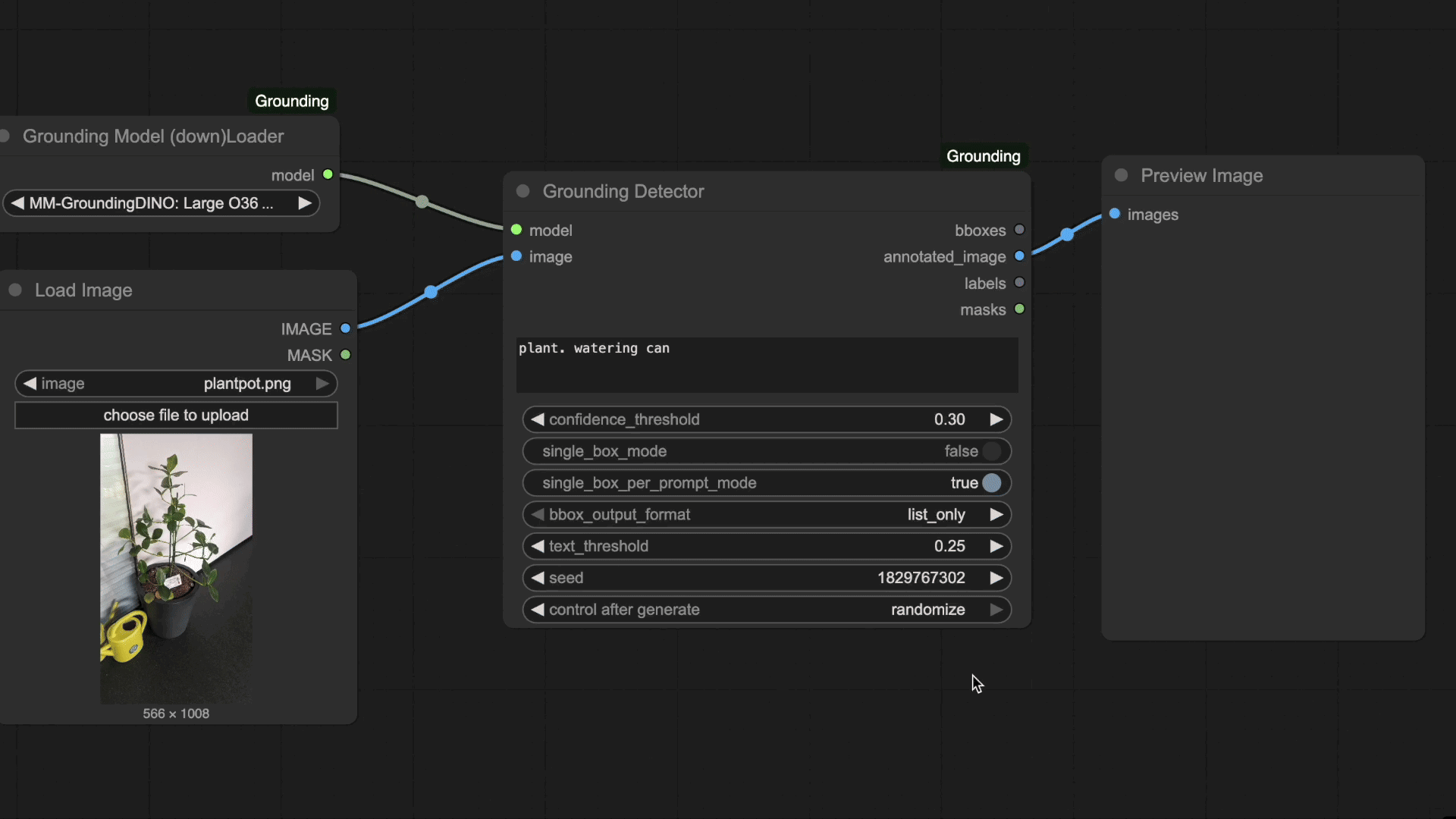

Model Switching

Switch between 19+ detection models with a single dropdown. One node for everything.

Model Switching

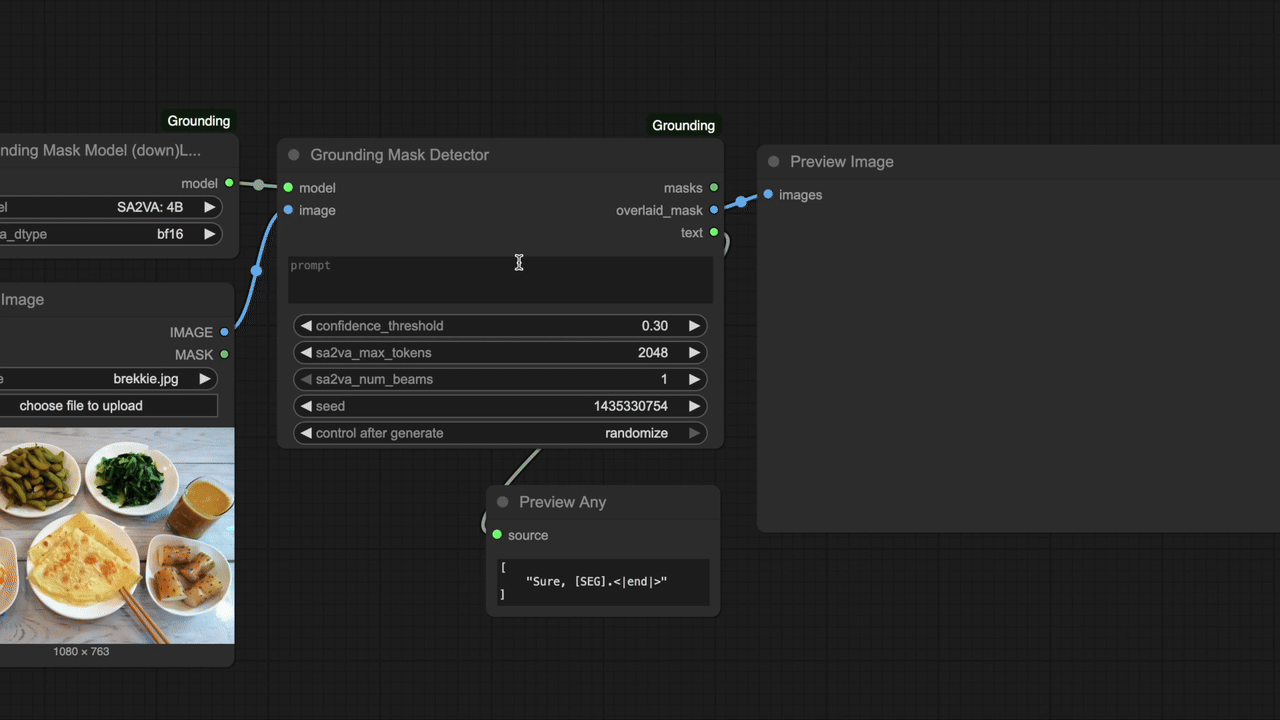

SA2VA Vision-Language Segmentation

When Florence2 isn't enough. Sa2va has VERY advanced semantic understanding and reasoning capabilities.

SA2VA in Action

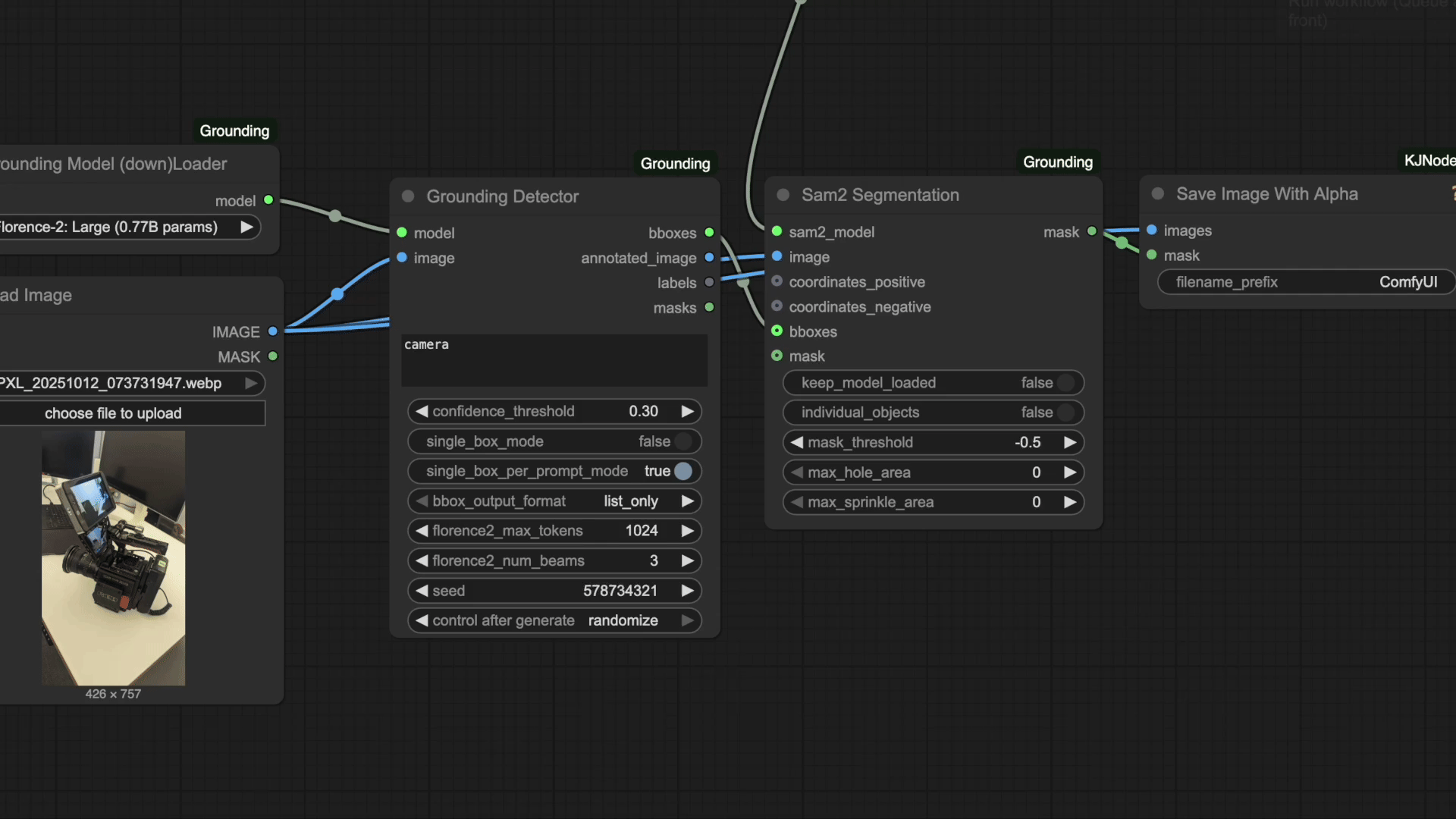

SAM2 Support

SAM2 Segmentation

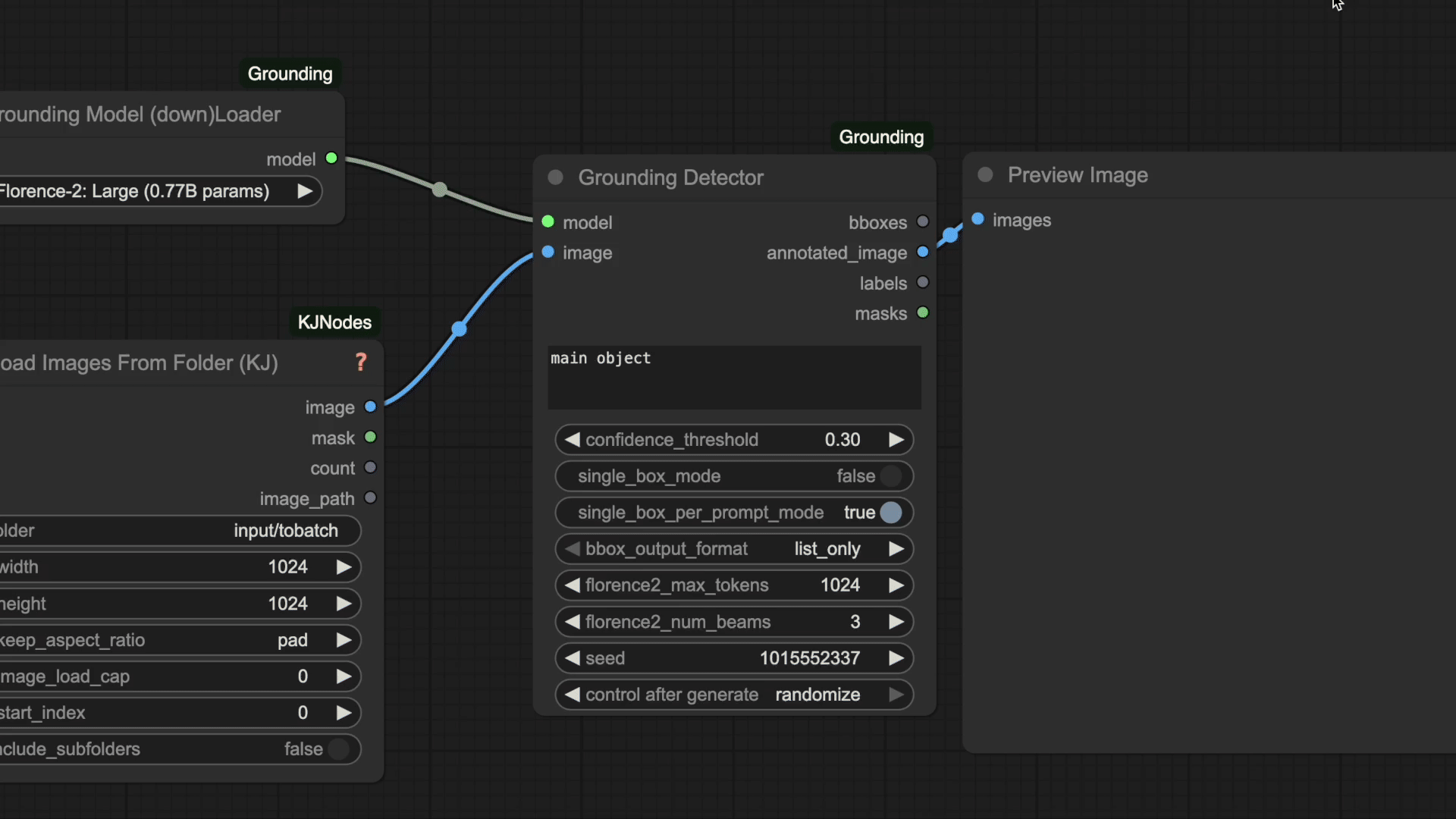

Batch Processing

Process multiple images simultaneously with all nodes supporting batch operations.

Batch Processing

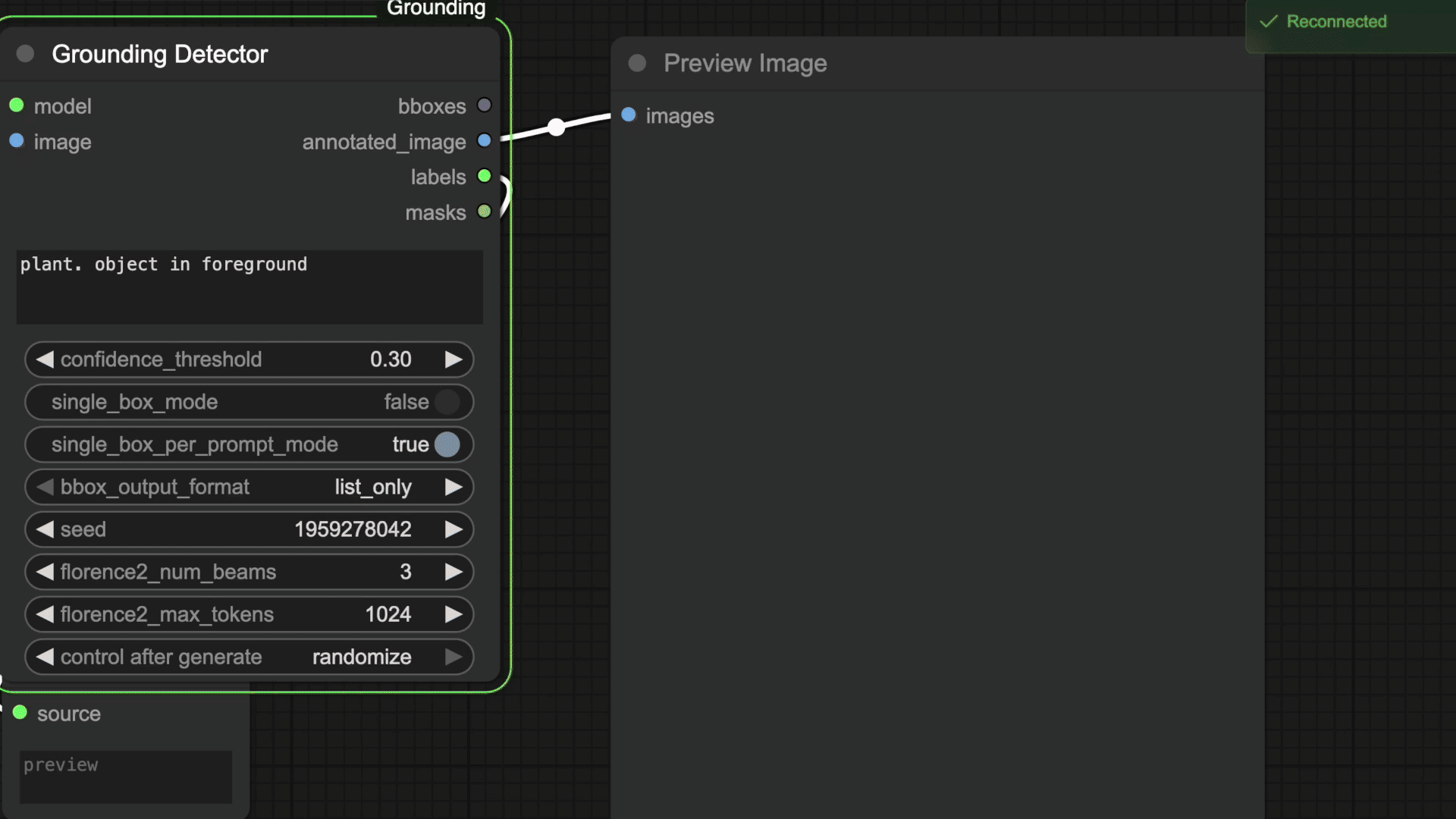

Label Splitting Logic

Control label separation: use periods for multiple labels, commas for single compound labels.

Prompt Separation Logic

Installation

cd ComfyUI/custom_nodes/
git clone https://github.com/PozzettiAndrea/ComfyUI-Grounding
cd ComfyUI-Grounding
pip install -r requirements.txt

On first startup, example assets and workflows are auto-installed.

The Nodes

Detection Nodes

1. Grounding Model Loader - 19+ models in dropdown (see footnotes)

2. Grounding Detector - Universal detector, splits labels on "." only

Mask Generation Nodes

3. Grounding Mask Loader - Florence-2 (2) + SA2VA (4) models

4. Grounding Mask Detector - Direct masks from text, outputs masks + overlays + descriptions

SAM2 Segmentation Nodes

5. SAM2 Model Loader - SAM2/2.1 (8 variants), auto-downloads, fp16/bf16/fp32

6. SAM2 Segment - Segment from bboxes or points

Utility Nodes

7. Bounding Box Visualizer - Custom line width

8. Batch Crop and Pad - Uniform sizing for batches

Example Workflows

  • normal_grounding.json - Detection + SAM2 segmentation
  • batch_normal_grounding.json - Multi-image processing
  • mask_grounding.json - Direct SA2VA masking

Advanced Features

Detection modes: single_box_mode (top result only) • single_box_per_prompt_mode (best per label) Output formats: list_only (SAM2-compatible) • dict_with_data (with labels/scores) Prompt format: Use periods for multiple labels "dog. cat." • Use commas for single label "small, brown dog"

VRAM Management

All loader nodes have a keep_model_loaded option (default: True):

  • True: Model stays in VRAM for fast subsequent detections (recommended for repeated use)
  • False: Model offloads to CPU after each detection, freeing VRAM (useful when combining with other heavy models like Flux)

Known Incompatibilities

GIMM-VFI (Frame Interpolation)

ComfyUI-Grounding may conflict with GIMM-VFI due to:

  • CUDA State Conflicts: SAM2/Florence-2 modify global CUDA settings (tf32 mode)
  • GPU Memory Competition: PyTorch vs CuPy memory allocators
  • Transformers Patching: Runtime patches to transformers library

Workaround: Uninstall GIMM-VFI if you experience import errors or crashes. These extensions cannot reliably coexist.

Credits

License

MIT License

Footnotes

Full list of models:

<div style="font-size: 0.75em; line-height: 1.4;">
  1. GroundingDINO: SwinT OGC (694MB) - IDEA-Research/grounding-dino-tiny
  2. GroundingDINO: SwinB (938MB) - IDEA-Research/grounding-dino-base
  3. MM-GroundingDINO: Tiny O365+GoldG (50.4 mAP) - openmmlab-community/mm_grounding_dino_tiny_o365v1_goldg
  4. MM-GroundingDINO: Tiny O365+GoldG+GRIT (50.5 mAP) - openmmlab-community/mm_grounding_dino_tiny_o365v1_goldg_grit
  5. MM-GroundingDINO: Tiny O365+GoldG+V3Det (50.6 mAP) - openmmlab-community/mm_grounding_dino_tiny_o365v1_goldg_v3det
  6. MM-GroundingDINO: Base O365+GoldG+V3Det (52.5 mAP) - openmmlab-community/mm_grounding_dino_base_o365v1_goldg_v3det
  7. MM-GroundingDINO: Base All Datasets (59.5 mAP) - openmmlab-community/mm_grounding_dino_base_all
  8. MM-GroundingDINO: Large O365v2+OIv6+GoldG (53.0 mAP) - openmmlab-community/mm_grounding_dino_large_o365v2_oiv6_goldg
  9. MM-GroundingDINO: Large All Datasets (60.3 mAP) - openmmlab-community/mm_grounding_dino_large_all
  10. OWLv2: Base Patch16 - google/owlv2-base-patch16
  11. OWLv2: Large Patch14 - google/owlv2-large-patch14
  12. OWLv2: Base Patch16 Ensemble - google/owlv2-base-patch16-ensemble
  13. OWLv2: Large Patch14 Ensemble - google/owlv2-large-patch14-ensemble
  14. Florence-2: Base (0.23B params) - microsoft/Florence-2-base
  15. Florence-2: Large (0.77B params) - microsoft/Florence-2-large
  16. YOLO-World: v8s (Small) - yolov8s-worldv2.pt
  17. YOLO-World: v8m (Medium) - yolov8m-worldv2.pt
  18. YOLO-World: v8l (Large) - yolov8l-worldv2.pt
  19. YOLO-World: v8x (Extra Large) - yolov8x-worldv2.pt
