    Eric Qwen Layer Nodes

    A ComfyUI node package for working with the Qwen-Image-Layered model. Decomposes images into multiple RGBA layers (background, subjects, elements) and saves them as layered PSD files.

    ComfyUI License

    Screenshots

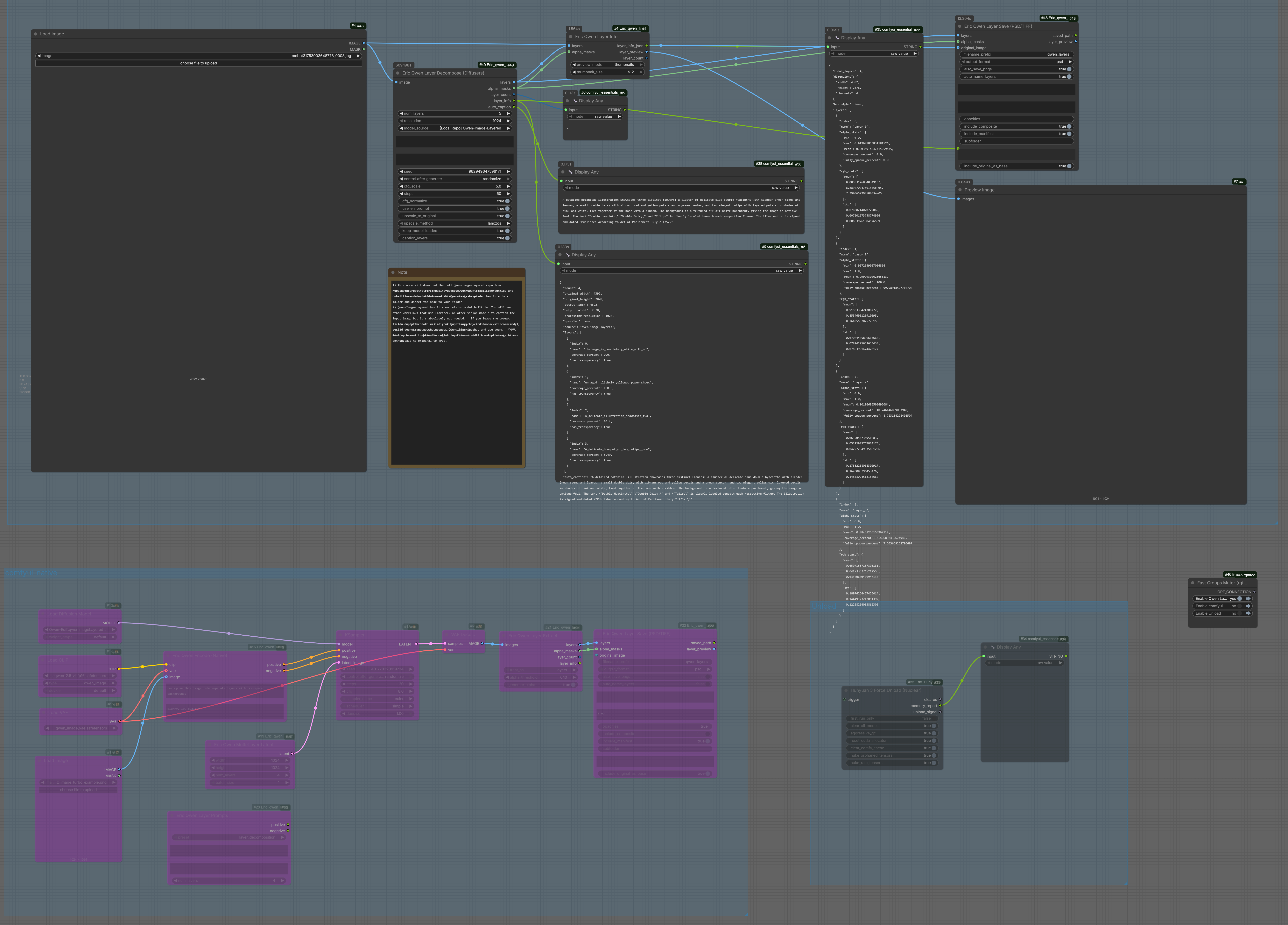

    Complete Workflow

    Complete Workflow

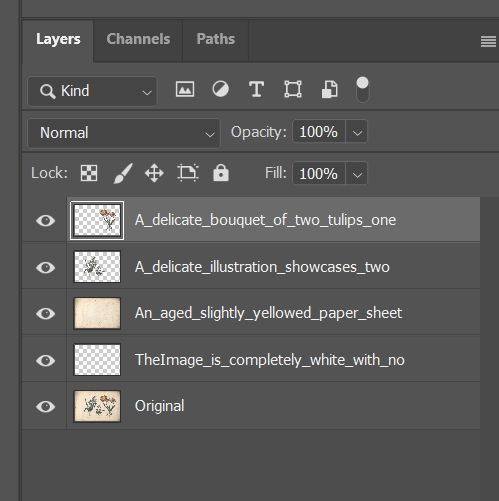

    Photoshop Layers Output

    Photoshop Layers

    Features

    • 🎨 Automatic Layer Decomposition - Separate images into semantic layers (background, subjects, elements)
    • 📝 AI-Powered Layer Naming - Use the built-in vision model to generate descriptive layer names
    • 💾 PSD/TIFF Export - Save layers as Photoshop files with proper layer structure
    • 🔄 Original Resolution Support - Scale layers back to original input size
    • ⚡ Pipeline Caching - Keep model loaded for fast batch processing
    • 🧹 VRAM Management - Unload models when done to free GPU memory

    Installation

    1. Clone or download this repository into your ComfyUI custom_nodes folder:

      cd ComfyUI/custom_nodes
git clone https://github.com/EricRollei/Eric_qwen_layer.git

    2. Install dependencies:

      pip install psd-tools tifffile diffusers transformers accelerate

    3. Restart ComfyUI

    Model Setup

    The Qwen-Image-Layered model can be loaded in two ways:

    Option A: Automatic Download from HuggingFace

    • Select "HuggingFace (Download)" in the model_source dropdown
    • Model will be downloaded automatically on first run (~15GB)

    Option B: Local Installation (Recommended)

    1. Download the model from Qwen/Qwen-Image-Layered
    2. Place it in ComfyUI/models/diffusion_models/Qwen-Image-Layered/
    3. Select [Local Repo] Qwen-Image-Layered in the model_source dropdown

    Node Reference

    Core Nodes

    Eric Qwen Layer Decompose (Diffusers)

    The main decomposition node. Takes an image and separates it into multiple RGBA layers.

    | Input | Type | Description | |-------|------|-------------| | image | IMAGE | Input image to decompose | | num_layers | INT | Number of layers to generate (2-10) | | resolution | COMBO | Processing resolution: 1024 (~1MP) or 640 (~0.4MP) | | model_source | COMBO | HuggingFace download or local model | | prompt | STRING | Optional prompt to guide decomposition | | negative_prompt | STRING | Optional negative prompt | | seed | INT | Random seed for reproducibility | | cfg_scale | FLOAT | CFG scale (1.0-20.0) | | steps | INT | Inference steps (10-100) | | cfg_normalize | BOOLEAN | Enable CFG normalization | | use_en_prompt | BOOLEAN | Use English for auto-captioning | | upscale_to_original | BOOLEAN | Upscale output to match input size | | keep_model_loaded | BOOLEAN | Keep pipeline in VRAM after processing | | caption_layers | BOOLEAN | Use vision model for layer names (slower but descriptive) |

    | Output | Type | Description | |--------|------|-------------| | layers | IMAGE | Batch of RGBA layer images | | alpha_masks | MASK | Batch of alpha channel masks | | layer_count | INT | Number of layers generated | | layer_info | STRING | JSON with layer metadata and names | | auto_caption | STRING | AI-generated image description |

    Eric Qwen Layer Save (PSD/TIFF)

    Save decomposed layers to various formats.

    | Input | Type | Description | |-------|------|-------------| | layers | IMAGE | Layer images from decompose node | | filename_prefix | STRING | Output filename prefix | | output_format | COMBO | psd, tiff, png_sequence, or zip | | also_save_pngs | BOOLEAN | Also save individual PNG files | | auto_name_layers | BOOLEAN | Auto-generate layer names from coverage | | layer_names | STRING | Custom layer names (one per line) | | layer_info | STRING | JSON from decompose node (extracts names) | | original_image | IMAGE | Original input - layers scaled to match | | include_original_as_base | BOOLEAN | Add original as bottom PSD layer |

    Eric Qwen Unload Model

    Free VRAM by unloading the cached pipeline.

    | Input | Type | Description | |-------|------|-------------| | trigger | * | Connect any output to trigger after completion |

    Layer Manipulation Nodes

    | Node | Description | |------|-------------| | Eric Qwen Layer Selector | Select specific layers by index | | Eric Qwen Layer Reorder | Reorder layers in the stack | | Eric Qwen Layer Composite | Flatten layers into single image | | Eric Qwen Layer Info | Display layer information |

    Utility Nodes

    | Node | Description | |------|-------------| | Eric Qwen Layer Load | Load layers from PSD/TIFF/PNG files | | Eric Qwen Layer Describe | Use external vision model for layer naming | | Eric Qwen String Join | Join multiple strings with separator |

    Native Workflow Nodes (Experimental)

    For advanced users wanting to use ComfyUI's native model loading:

    | Node | Description | |------|-------------| | Eric Qwen Add Alpha | Add alpha channel to RGB images | | Eric Qwen Encode | Native VAE encoding for RGBA | | Eric Qwen Layer Extract | Extract layers from latent | | Eric Qwen Multi-Layer Latent | Create multi-layer latent structure | | Eric Qwen Layer Prompts | Generate layer-specific prompts | | Eric Qwen RGBA VAE Loader | Load the RGBA VAE model |

    Workflow Examples

    Basic Layer Decomposition

    [Load Image] → [Eric Qwen Layer Decompose] → [Eric Qwen Layer Save]

    Full Resolution with Original Base

    [Load Image] ──┬──→ [Eric Qwen Layer Decompose] → layers ──────→ [Eric Qwen Layer Save]
               │                                    ↓                      ↑
               │                              layer_info ─────────────────→│
               │                                                           │
               └──────────────────────────────→ original_image ───────────→┘

    This workflow:

    • Decomposes the image into layers
    • Scales all layers back to the original image resolution
    • Includes the original image as the bottom layer in the PSD
    • Uses layer names from the decompose node

    With AI Layer Naming

    Enable caption_layers: True on the Decompose node to get descriptive names like:

    • "Aged_paper_background_with_text"
    • "White_flower_with_green_leaves"
    • "Orange_chrysanthemum_bloom"

    VRAM Management

    [Decompose (keep_model_loaded=False)] → [Save]

    Or keep model loaded and manually unload:

    [Decompose (keep_model_loaded=True)] → [Save] → [Unload Model]

    Tips

    1. Resolution: Use 1024 for best quality (~1MP output). Use 640 for faster processing.

    2. Layer Count: Start with 4 layers. Increase for complex images with many distinct elements.

    3. Original Image: Connect to Save node to:

      • Scale layers to original resolution
      • Include original as reference layer in PSD

    4. Caption Layers: Adds ~5-10 seconds per layer but gives semantic names.

    5. VRAM: The model uses ~15GB VRAM. Use Unload Model node when switching to other workflows.

    Photoshop Pro Tip: Full-Resolution Layer Extraction

    When you connect the original_image input, the PSD contains both the AI-generated layers AND your original image at full resolution. This unlocks a powerful workflow:

    1. Ctrl+Click on any Qwen layer thumbnail to load it as a selection
    2. Select the original image layer (bottom layer)
    3. Ctrl+J to copy the selected area to a new layer

    This gives you full original resolution elements with AI-powered semantic selection! The Qwen layers act as intelligent masks - the AI understands "these pixels are the flowers" - but you extract from the pristine original.

    Requirements

    • ComfyUI
    • Python 3.10+
    • PyTorch 2.0+
    • CUDA GPU with 16GB+ VRAM recommended

    Python Dependencies

    diffusers>=0.27.0
transformers>=4.51.3
accelerate
psd-tools>=1.9.0
tifffile
Pillow
numpy
torch

    Known Limitations

    • Large images (>4K) are resized to ~1MP for processing
    • Layer naming with vision model adds processing time
    • PSD layer names limited to ASCII (Unicode/CJK characters sanitized automatically)
    • Native workflow nodes are experimental
